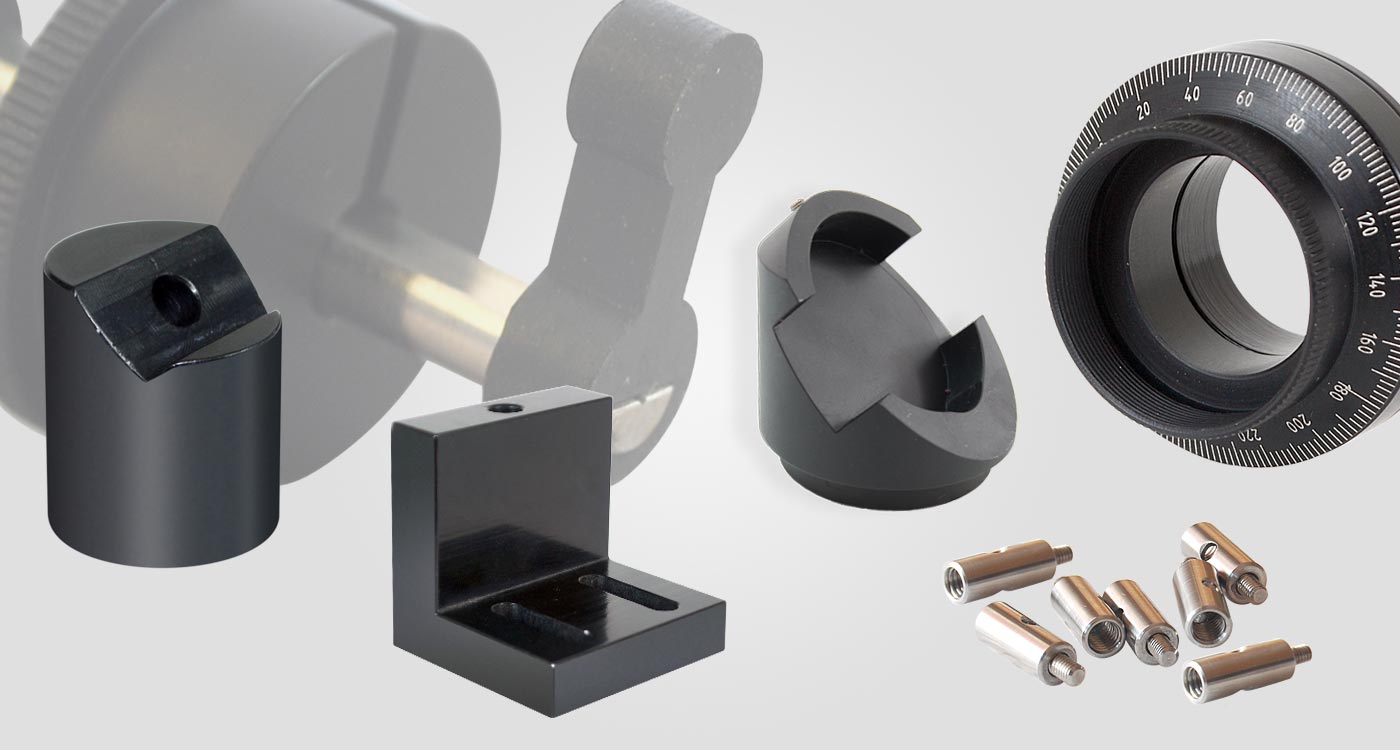

Description
Fixed Angle Rigid Mirror Holder
This mount is used for holding optics of 25 mm and 50 mm diameter at an angle of 30 degree or 45 degree.
| Specifications | ||
| Mounting angle | : | 30 degree, 45 degree |
| Material | : | Aluminium |
| Post mounting | : | by M6 threaded holes |
| Mirror mounting | : | by circular step provided on the mount |
| Model No: | Optic Size | Angle | |
| 30-MM-25 | 25 mm/1″ | 30° | |
| 45-MM-25 | 25 mm/1″ | 45° | |
| 30-MM-50 | 50 mm/2″ | 30° | |
| 45-MM-50 | 50 mm/2″ | 45° |
Circular Mirror Adapters
CA – MM series circular mirror adapters are suitable for mounting circular optics into MM series kinematic mirror mounts. All CA – MM series circular adapters follow same mounting methods. Small adapters can be easily fixed to bigger mounts.
| Model No: | Optic Size | d | D | |
| CA-MM-10 | 10 mm | 12 | 10 | |
| CA-MM-12.5 | 12.5 mm or 0.5″ | 14.5 | 12.5 | |
| CA-MM-25 | 25 mm or 1″ | 27 | 25 | |
| CA-MM-50 | 50 mm or 2″ | 52 | 50 | |
| Suitable for MM series and TAMM Series mounts only | ||||
45 – MM series 45° mirror mount holders are suitable for mounting circular optics to MM series and TAMM series kinematic mirror mounts. All 45 – MM series circular holders follow same mounting methods. Small circular adapters can be fixed easily to bigger mounts.
| Model No: | Optic Size | d | d1 | H | C | TD | |
| 45-MM-10 | 10 mm or 0.4″ | 30 | 25 | 32 | 16 | 6 | |
| 45-MM-12.5 | 12.5 mm or 0.5″ | 30 | 25 | 32 | 16 | 6 | |
| 45-MM-25 | 2 5 mm or 1″ | 30 | 25 | 37 | 22 | 6 | |
| 45-MM-38 | 38 mm / 1.5″ | 42 | 38 | 46 | 25 | 8 | |
| 45-MM-50 | 50 mm or 2″ | 55 | 50 | 60 | 30 | 10 | |
| Compatible with BM Series, KMC Series, BMX Series, TAPM Series Mounts | |||||||
Optics in the range of 1 mm to 3 mm can be held in these thin optic adapters. These are suitable for mounting thin beam splitters, mirrors or filters on a threaded cell.
| Model No: | Optic Size ( D ) | d | CA | d1 | |
| ADN-25 | 25 mm or 1″ | 30 | 23 | 25.4 | |
| ADN-38 | 38 mm or 1.5″ | 44 | 35 | 38.1 | |
| ADN-50 | 50 mm or 2″ | 55 | 47 | 50.8 | |
| Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts | |||||
Rotation adapters have angular readout. It is used to fix kinematic mounts directly using nylon tipped set screw.
| Model No: | D | d | d1 | d2 | |
| RA-25 | 25 mm or 1″ | 38 | 25 | 28 | |
| RA-50 | 50 mm or 2″ | 65 | 50 | 55 | |
| Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts | |||||
Lever hole for tightening
8mm diameter
Can be directly mounted to standard post
| Model No | Type Male – Female | Price $ |
| PA – M4M4 | M4 – M4 | asa |
| PA – M4M6 | M4 – M6 | asa |
| PA – M6M4 | M6 – M4 | asa |
| PA – M6M6 | M6 – M6 | asa |
Suitable for lens having edge thickness up to 10 mm.
| Model No | D | d | CA | d1 | |
| ALDN-25 | 25mm or 1″ | 30 | 23 | 25 | |
| ALDN-38 | 38mm or 1.5″ | 42 | 35 | 38 | |
| ALDN-50 | 50mm or 2″ | 55 | 47 | 50 | |
| Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts | |||||
Kinematic mount of 25 mm optical diameter is suitable for mounting this adapter. Bare fiber can be fixed with FH – 25 – FCH adapter by a fiber chuck and holder provided with the adapter. In FH – 25 – FC and FH – 25 – SMA adapters, FC connector and SMA connecters are provided.
| Model No | Type | |
| FH-25-FCH | For bare fiber | |
| FH-25-FC | FC Connectorized fiber | |
| FH-25-SMA | SMA Connectorized fiber | |
| Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts | ||
Cube prism is mounted using nylon tipped set screw.
| Model No | D | d | d1 | CA | D | L1 | L | |
| CBSA-10 | 10 mm or 0.4″ | 30 | 25 | 8 | 10 | 10 | 18 | |
| CBSA-12.5 | 12.5 mm or 0.5″ | 30 | 25 | 10 | 12.5 | 12.5 | 20.5 | |
| CBSA-15 | 15 mm or 0.6″ | 30 | 25 | 12 | 15 | 15 | 23 | |
| CBSA-20 | 20 mm or 0.8″ | 30 | 25 | 17 | 20 | 20 | 28 | |
| CBSA-25 | 25 mm or 1″ | 30 | 25 | 22 | 25 | 28 | 36 | |
| CBSA-38 | 38 mm or 1.5″ | 60 | 38 | 35 | 38 | 42 | 50 | |
| CBSA-50 | 50 mm or 2″ | 75 | 50 | 47 | 50 | 54 | 62 |
Circular Mirror Adapter has three point contact. Optics are held in position using nylon tipped set screw.
| Model No: | Optic Size | d | d1 | |
| CMA-10 | 10 mm or 0.4″ | 25 | 25 | |
| CMA-12.5 | 12.5 mm or 0.5″ | 25 | 25 | |
| CMA-25 | 25 mm or 1″ | 32 | 25 | |
| CMA-38 | 38 mm or 1.5″ | 50 | 38 | |
| CMA-50 | 50 mm or 2″ | 60 | 50 | |
| Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts | ||||
Suitable for fixing mirrors or beam splitters at 45° onto the kinematic Mount. Nylon tipped set screw is used for fixing the optics into the adapter.
| Model No: | Optic Size | d | d1 | H | C | CA | TD | |
| 45-BM-10 | 10 mm or 0.4″ | 30 | 25 | 32 | 16 | 6 | 6 | |
| 45-BM-12.5 | 12.5 mm or 0.5″ | 30 | 25 | 32 | 16 | 8 | 6 | |
| 45-BM-25 | 25 mm or 1″ | 30 | 25 | 37 | 22 | 15 | 6 | |
| 45-BM-38 | 38 mm / 1.5″ | 42 | 38 | 46 | 25 | 20 | 8 | |
| 45-BM-50 | 50 mm or 2″ | 55 | 50 | 60 | 30 | 30 | 10 | |
| Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts | ||||||||
Objective lens like Microscope objective with RMS and C mount threads or camera lenses can be fixed to kinematic mounts using an objective lens adapter
Compatible with BM Series, KMC Series, BMX Series, TABM Series Mounts
| Model No: | Type | |
| CA-25-RMS | RMS Thread | |
| CA-25-CM | C Mount |
Suitable for prism or cube
Compatible with MM series, TAPM series mounts.
| Model No: | Optic Size | |
| CBSPC-25 | Up – 15 mm | |
| CBSPC-38 | Upto – 25 mm or 1″ | |
| CBSPC-50 | Up to 50 mm or 2” |
Available in 3 different heights
Used to fix kinematic mounts or rigid mounts at 45 degrees
Black anodized finish
| Model No: | Height | |
| 45-MMH-15 | 15 mm | |
| 45-MMH-30 | 30 mm | |
| 45-MMH-50 | 50 mm |
Slotted adapter is suitable for holding the optic mount on a post system with its surface centered.
| Model No: | Height | |
| SB-KM-15 | Small | |
| SB-KM-50 | Large |
L shaped base plate can be used to hold mounts at a fixed height from optical table. It’s base helps to fix it without tilting.
| Model No: | Height | |
| LBP-KM-25 | 25 mm | |
| LBP-KM-50 | 50 mm | |
| LBP-KM-75 | 75 mm |
