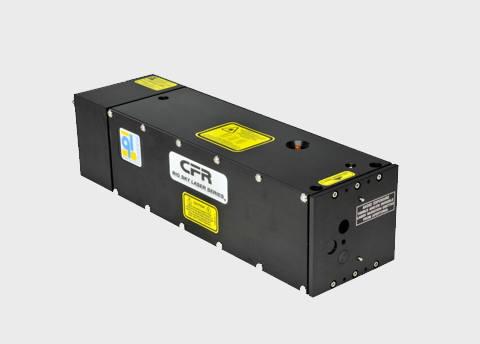

CFR (200-400 mJ)

The CFR laser is a lamp pumped Nd:YAG laser featuring a degree of ruggedization not found in typical scientific lasers. The CFR design has been vibration tested and each laser is temperature cycled overnight, and tested again before shipping to ensure the laser arrives aligned and ready for use.

  • 1064, 532, 355, 266, 213 nm and 1.57 µm available
  • Alignment guaranteed
  • Quick umbilical disconnects
  • Compact and portable
  • Gaussian or multimode resonators
  • 50 million shots lamp lifetime guaranteed
  • Built to withstand harsh environments

Description

The CFR 200/400 are designed to deliver laser radiation on target, to specification without the need to adjust, tweak or realign. These sealed tools are designed for industrial customers and researchers alike who stake their livelihoods on a compact laser that will produce results on a tight schedule.

Each CFR (Compact Folded Resonator) is guaranteed to deliver up to 400 mJ within 10 minutes of unpacking.  With no knobs to adjust or harmonics to phase match, a CFR laser features a technology payload that ensures it remains immune from dust, vibration and the school of hard knocks. And small, the CFR 200 is just over 12 inches (34 cm) in length. When you need a laser, you need a tool not a science project. Reach for a CFR 200/400 and get the job done.

Model CFR200 CFR300 CFR400
Repetition rate (Hz) ≤ 100 ≤ 20 ≤ 30
Energy (mJ) 1064 nm 200 300 400
532 nm 130 200 230
355 nm 70 90 90
266 nm 50
1.57 µm 65 65
Pulse duration (ns) 8 8 9
Dimensions in mm [inches] (H x L x W) Laser head 84 x 323 x 94 [3.3 x 12.7 x 3.7]
Power supply Depends on repetition frequency
Weight  in kg [lbs] Laser head 3.6 [8]
Power supply 14 [31]

Applications

  • Ablation
  • LIBS
  • LIF
  • PIV
  • Ti:Sa pumping
  • etc.
