Digital Miniature Multi Channel Analyzer MCA 527

DESCRIPTION

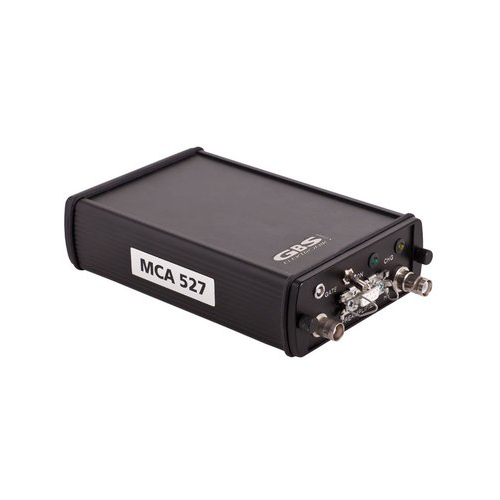

The MCA527 is a battery powered high performance 16K Multi-Channel Analyzer/Multi-Channel Scaler module with the performance of a laboratory grade MCA. High voltage supply for detector and preamplifier power supply are integrated as well as an internal coarse amplifier and digital filtering and analysis. Together with a detector it forms a small-size gamma spectroscopy system, which is well suited to the demands of field measurements for international safeguards, environmental monitoring, nuclear waste treatment facilities, radioactive transport control and similar applications.

Amplifier:

  • Coarse amplifier prefilter with amplifications in steps of 2, 5, 10, 20, 50, 100, 200, 500, 1000 corresponding to a full scale ADC;
  • Input signal positive or negative;
  • Linearity better than 0.1%.
ADC:
  • 14bit, 10 MSps;
  • Integral Nonlinearity <0.025%;
  • temperature stability TK 50.
Digital signal processing:
  • double differential trigger filter, or single differential low energy low count rate trigger filter;
  • Pile-up-suppression, pulse pair resolution ~400ns, depending on trigger filter;
  • Automated and manual adjustment of trigger threshold;
  • Channel splitting 128, 256, 512, 1k, 2k, 4k, 8k or 16k;
  • Differential nonlinearity <1% for 4k channels and 2μs peaking time;
  • Automated PZC adjustment, detector decay time constants from 40μs to 1ms can be compensated;
  • TRP preamplifier or Resistive feedback selectable
High voltage:
  • Detector HV up to ±5kV, polarity depends on module inserted.
Power supply:
  • Li-Ion batteries, operation time 10-25h, depending on detector connected (tbd).
Computer Interface:
  • USB, RS-232 (38.4, 115.2, 307.2 kBd and 3MBd), Ethernet.
Mechanical:
  • Housing 164 mm x 111 mm x 45 mm without connectors; weight 820g.
Environmental:
  • operational: at least 0 – 50 °C, eventual larger range;
  • humidity up to 90%, non condensing, IP42.

Description

Features

  • Automated base line restorer and threshold adjustment
  • Automated or manual pole zero adjustment without oscilloscope
  • System dead time and count rate indication
  • Dead time correction
  • Automated spectrum recording
  • Peak stabilization
  • Basic analysis functions (energy calibration, FWHM, peak area and integral calculations, spectrum stripping and smoothing)
  • File menu: write/read functions with drive/path – and file pick list functions
  • Setup menu: ADC, Amplifier, Presets, Memory splitting, MCA mode, MCS mode, Multi spectral recording mode, automated instrument configuration using setup file
  • Analysis menu: Energy calibration und further analysis functions defined according the purpose. Energy calibration with linear calibration curve using 2 peaks or energy channel pairs
  • Acquire control: Start, Stop, Erase, Presets Incorporated Help texts Print screen for print via system printer (Windows) quick documentation
  • Display functions: Automated vertical full scale (VFS), manual and logarithmic VFS, cursor functions, expand and unexpand, ROI setting
  • Detection limit formalism: more than 17
