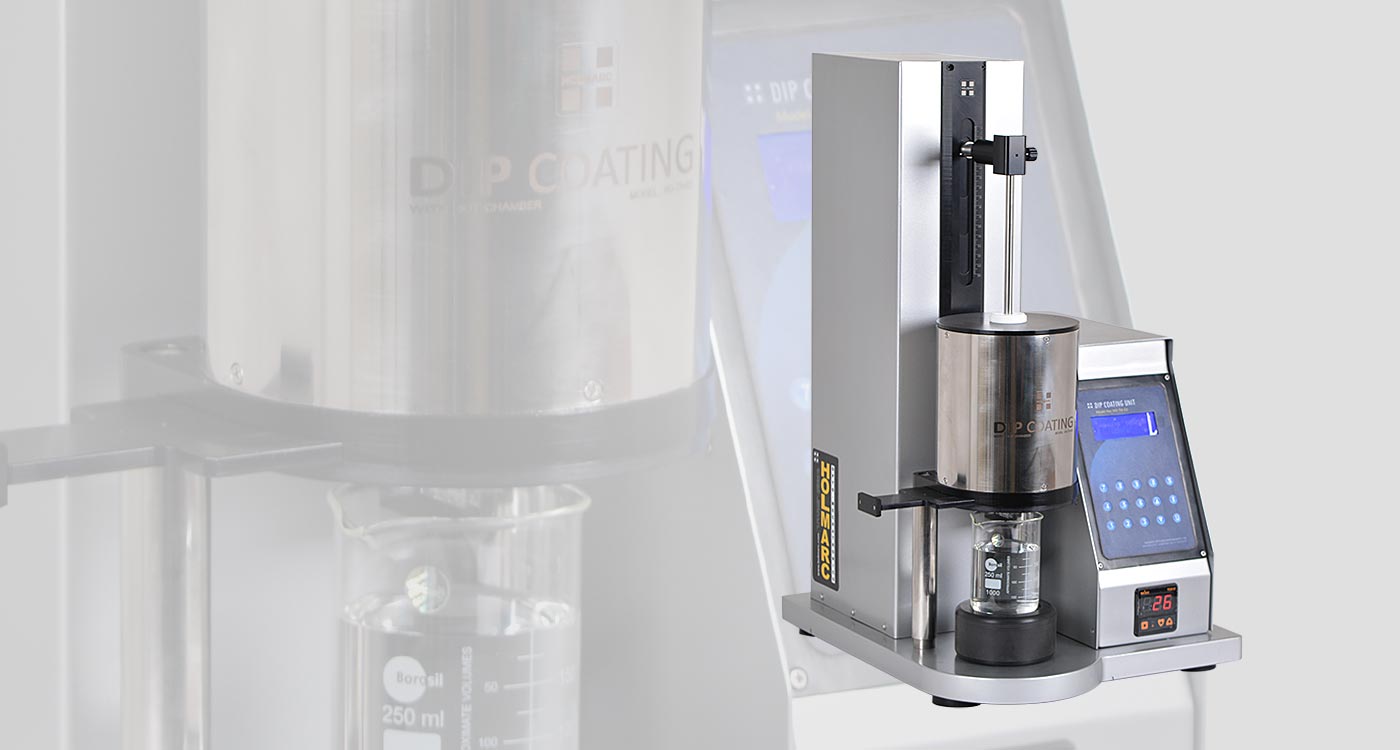

In Holmarc’s Dip Coating Unit Model:HO-TH-02, the substrate is dipped in the solution and then withdrawn into a heating chamber. Temperature of the chamber can be controlled and fixed up to 75°C from ambient. All other features are same as that of Model: HO-TH-01.
The system has a user friendly front panel with key board and LCD display. It can as well be controlled through a computer. Dip duration, dip speed, baking duration, withdrawal speed etc. are programable features. Servo motor is used as actuator for vibration free dipping and withdrawal.
The device is designed and manufactured as table top device with entire electronics and servo motor housed in a compact unit. A number of substrate can be held to the holder at the same time. Height of the substrate holder can be adjusted with respect to the level of the solution during the experiment.
|Drive mechanism||:||Lead screw|
|Speed control||:||6 step variable speed|
|Power input||:||230V, 50Hz|
|PC connectivity||:||Serial port (RS 232)|
|Stroke length max.||:||150 mm|
|Drawing speed min.||:||18 micron / sec|
|Drawing speed max.||:||9000 micron / sec|
|Dimensions (appx.)||:||630 x 348 x 416 mm|
|Program memory||:||5 Programs|
|Max. power consumption||:||460 Watts|
|Weight (appx.)||:||45 Kg|
