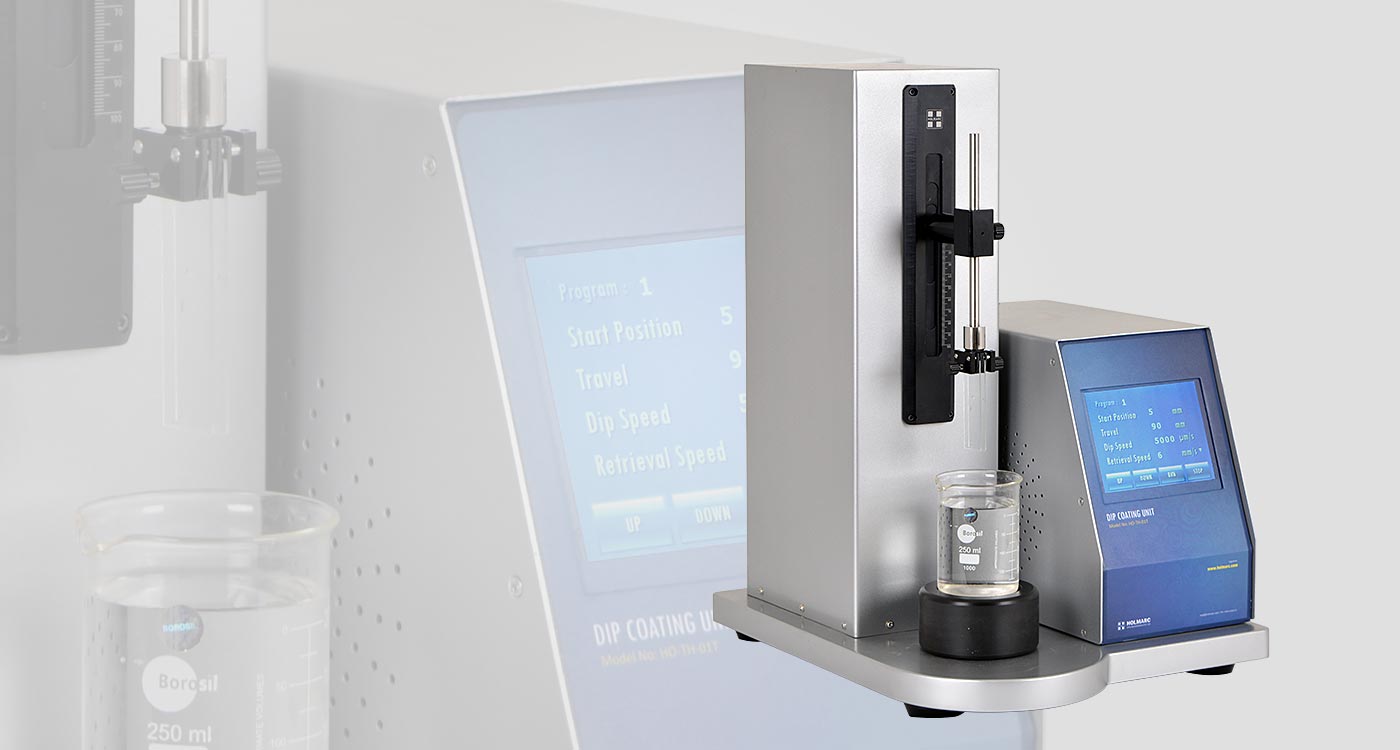

Holmarc’s Dip Coating Unit with Touch screen Interface delivers an optimized performance and smart technology. Model: HO-TH-01T, features 4.5 inch LED touch screen display. A user can easily input or control all the process parameters through simple or multi-touch gestures by touching the screen. The touch screen enables the user to interact directly with what is displayed, rather than using a keypad. Moreover it can be controlled through a computer. All other features are same as that of Model: HO-TH-01.
Servo motor is used as the actuator for vibration free dipping and withdrawal. The device is designed and manufactured as table top device with entire electronics and servo motor housed in a compact unit. A number of substrates can be held to the holder at the same time. Height of the substrate holder can be adjusted with respect to the level of the solution during the experiment.
|Drive mechanism||:||Lead screw|
|Power input||:||230V, 50Hz|
|PC connectivity||:||USB Interface|
|Stroke length max.||:||100 mm|
|Drawing speed||:||18 micron / sec – 9mm / sec|
|Dip duration||:||0 – 99 seconds / minutes / hours|
|Max. no.of repetitive dips||:||1 – 999|
|Interface||:||4.5 inch LED Touch screen|
|Dimensions (appx.)||:||368 x 420 x 512 mm|
|Weight (appx.)||:||40 Kg|
Documents / Drawings
PID Controller is used for optimum heating of the substrate. Apart from other sensors that sense the temperature of the heating chamber as a whole, the infrared sensor gives feedback of the temperature attained by the substrate by monitoring its emissivity.
Dip coating unit with infrared dryer is mainly used in physics, chemistry and biotechnology labs and corresponding research activities. Our device is designed and manufactured as a table top unit with electronics and servo motor aptly positioned making it compact and best suited for laboratory and research activities.
Key Features :
Compact and attractive design
User friendly keyboard & LCD monitor
User friendly software
Infrared dryer for precise substrate heating
