Kinematic Mount With Maximum Aperture

BMX Series

M6 & M4 mounting holes
Black Anodized Finish

Description

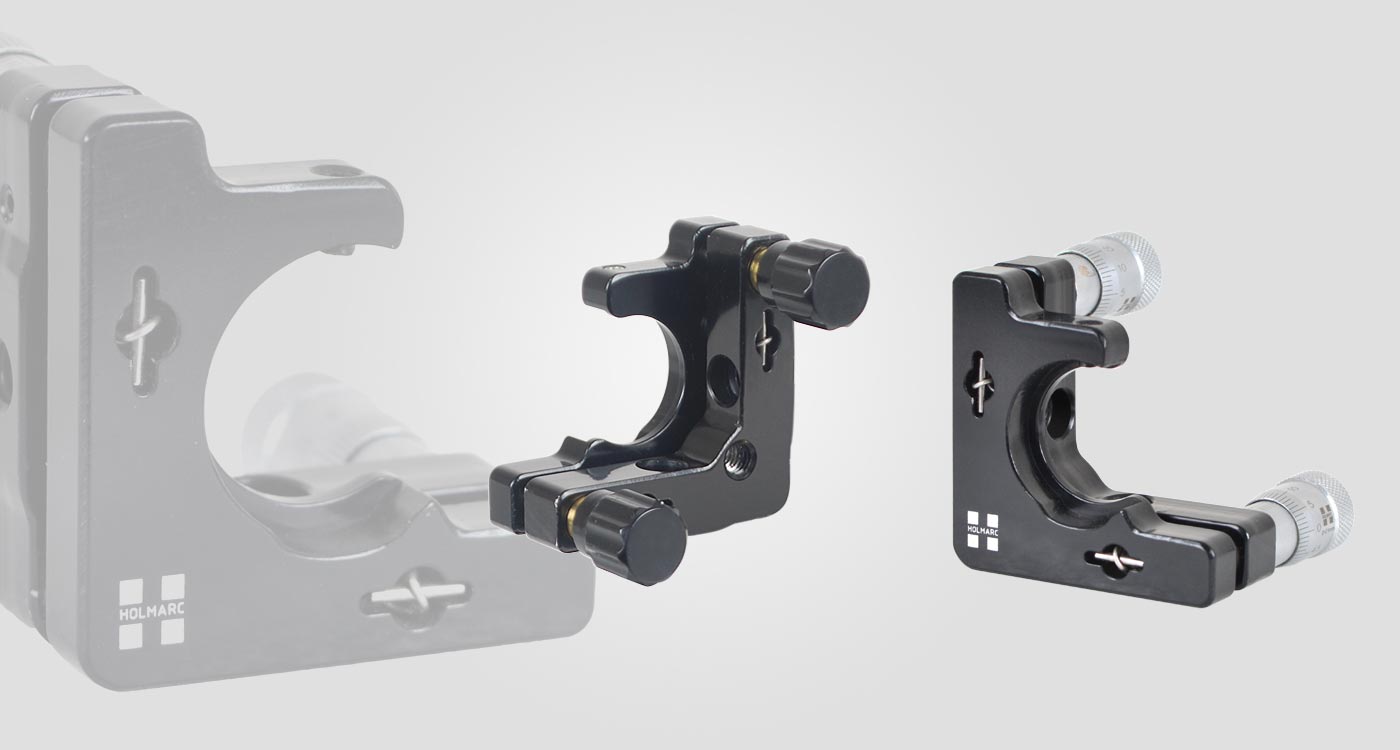

In BMX series maximum aperture mirror / beam splitter mount, optics is mounted at the center of the mount. Obstruction from the mount will be minimum. There is more freedom in setting up reflection or transmission angle.

Two types of BMX series mirror/beam splitter mounts are available. BMX – AK – T series mounts provide translation in addition to tilting in two axis.



Specifications

    Angular Tip / Tilt     :     +/- 3°
    Translation Range     :     6 mm ( Selected Models Only )
    Linear Resolution     :     0.25 mm ( 100 Tpi )
    Sensitivity     :     4 arc sec.
    Mounting Hole     :     M6 Tapped / M4 CBR
    Mounting Orientation     :     Vertical & Horizontal
    Material     :     Aluminium



Documents / Drawings





Model No. Optics Size Mounting Hole
BMX-CS-25 25 mm or 1″ M6
BMX-CS-38 38 mm or 1.5″ M6
BMX-CS-50 50 mm or 2.0″ M6
BMX-Mu-25 25 mm or 1″ M6
BMX-Mu-38 38 mm or 1.5″ M6
BMX-Mu-50 50 mm or 2.0″ M6
Mount with Translation
BMX-CS-T-25 25 mm or 1″ M6
BMX-CS-T-38 38 mm or 1.5″ M6
KMC-CS-T-50 50 mm or 2.0″ M6
BMX-Mu-T-25 25 mm or 1″ M6
BMX-Mu-T-38 38 mm or 1.5″ M6
KMC-Mu-T-50 50 mm or 2.0″ M6

CS Series

Mu Series
< < Select your drive
A – 19 ± 3 A – 25.5 ± 3 25 mm or 1″     CS Series – Covered Lead Screw Drive
Mu Series – Micrometer Drive
A – 21 ± 3 A – 25.5 ± 3 38 mm or 1.5″
A – 23 ± 3 A – 25.5 ± 3 50 mm or 2.0″
