Q-scan (200 nm-4.5 µm)

NEW : The Q-scan is a high resolution nanosecond dye laser ranging from 200 nm to 4.5 µm. Ultra-high precision mechanics ensure extreme wavelength accuracy and makes this laser ideal for combustion and high resolution spectroscopy applications. The Q-scan’s exceptional linearity (< 2 pm) ensures highest wavelength accuracy during scan. Quick change, “Plug & Play” dye cells and integrated look-up tables for non linear crystals means that wide wavelength scans are quick and easy. Combined with the Q-smart Nd:YAG pump laser, the Q-scan offers unprecedented ease of use in the smallest package on the market.

  • Extreme wavelength accuracy and reproducibility
  • High efficiency- Excellent beam quality
  • Quick dye change with plug and play dye cells
  • Easy scan with integrated look-up tables for NLOs
  • Integrated beam deviation compensator
  • Fully integrated system with Nd:YAG pump lasers

Description

Description

The Q-scan is a high resolution nanosecond dye laser ranging from 200 nm to 4.5 µm.

Ultra-high precision mechanics ensure extreme wavelength accuracy and makes this laser ideal for combustion and high resolution spectroscopy applications.

The Q-scan’s exceptional linearity (< 2 pm) ensures highest wavelength accuracy during scan. Quick change, “Plug & Play” dye cells and integrated look-up tables for non linear crystals means that wide wavelength scans are quick and easy

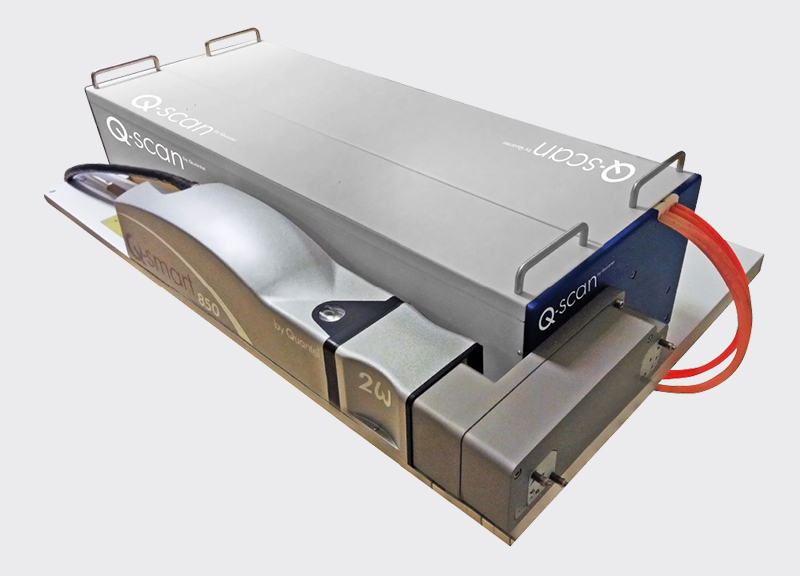

Combined with the Q-smart Nd:YAG pump laser, the Q-scan offers unprecedented ease of use in the smallest package on the market.



Specification

Wavelength (nm) 205 226 281 562 2000
Process ω ω-1064
Typical energy (mJ)
Q-smart 850 10 Hz:
– 430 mJ @ 532 nm

4.5

25

100

6

– 230 mJ @ 355 nm 5
Typical energy (mJ)
YG 981E 10 Hz:
– 820 mJ pump @ 532 nm

10

50

200

11

– 490 mJ pump @ 355 nm 9
Dimensions in mm [inches] (H x L x W) 1150 x 650 x 300 [45.3 x 25.6 x 11.8]



Applications

  • LIBS
  • LIDAR
  • LIF
  • Combustion
  • CARS
  • High resolution spectroscopy
  • etc.



Q-scan warranty

  • Q-scan systems are guaranteed for 2 years. Optics are guaranteed for 3 months.
  • Warranty covers parts & labor.
  • If the laser is repaired at a Quantel facility, shipment is paid one way by Quantel, one way by the customer.
