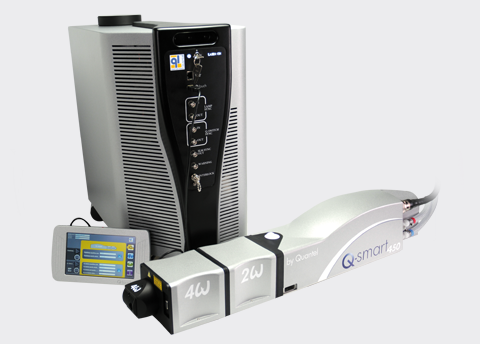

Q-smart (450 mJ)

Introducing a new addition to the Quantel Q-smart line of lasers… the Q-smart 450! The Q smart family includes the most flexible pulsed Nd:YAG laser systems in the world.  Complete with automatic harmonic generator phase matching, these innovative systems insure simple operation and guarantees optimal energy performance. Monolithic block construction and compact design features provides superior beam geometry in a compact package. The intuitive Q-touch screen interface makes this the smart choice for easy operation. The Q-smart  450 has many user-friendly features:

  • Quick and easy access to 1064, 532, 355, 266 & 213 nm
  • Repetition rates up to 20Hz
  • Lightweight and compact design
  • Quick-connect cables and cooling lines
  • Innovative, hands-off phase matching
  • Intuitive touch screen interface
  • No installation required
  • 100 million shot flashlamp lifetime
  •  2-year warranty
  • New : SLM (Single Longitudinal Mode) option available and upgradable on site
  • New : highest energy at 532 & 355 nm with a single doubling crystal

Description

Resonator type GRM
Repetition rate (Hz) 10 20
Energy (mJ) 1064 nm 450 400
532 nm 220 200
355 nm 130 120
266 nm 60 50
213 nm 10 8
Pulse duration (ns) </=6
Beam divergence (mrad) < 0.5
Dimensions in mm [inches] (H x L x W) Laser head 147 x 526 x 125 [5.8 x 20.7 x 4.9]
Harmonic modules 99 x 123 x 125 [3.9 x 4.8 x 4.9]
Power supply 513 x 507 x 283 [20.2 x 19.9 x 11.1]
Weight in kg [lbs] Laser head < 7 [15.4]
Power supply 27 [59.5]



  • Ablation
  • Flash photolysis
  • Holography
  • LIBS
  • LIDAR
  • Cleaning
  • Spectroscopy
  • Photo acoustic imaging
  • OPO pumping
  • etc.
