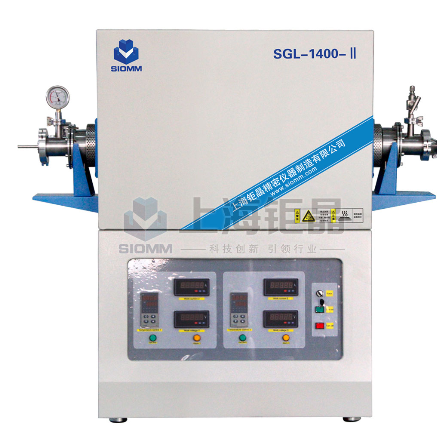

SGL-1400-II – 1400°C Two Heating Zone Vacuum Tube Furnace

Equipped with two heating zones to creat temperature differences within 300℃, widely used in universities, science research institutions, industrial and mining enterprises to do high temperature sintering atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.
Model:SGL-1400-Ⅱ
Brand:SIOMM
Delivery period:1-5 working days
Accept Customization:Customizable
Views:394

Description

1400℃ double heating zones vacuum tube furnace is adopted high quality silicon carbide rode as heating elements and equipped with two heating zones to create temperature difference., with dual shell structure and intelligent auto-control temperature system, phase-shift trigger, SCR control, the furnace chamber adopts polycrystalline alumina fiber material. Air cooling system between the dual shell can heat and cool rapidly, vacuum device for optional purchase, the furnace can work under the vacuum or atmosphere. Furnace chamber is built with imported high pure polycrystalline alumina fiber which has long life time.
