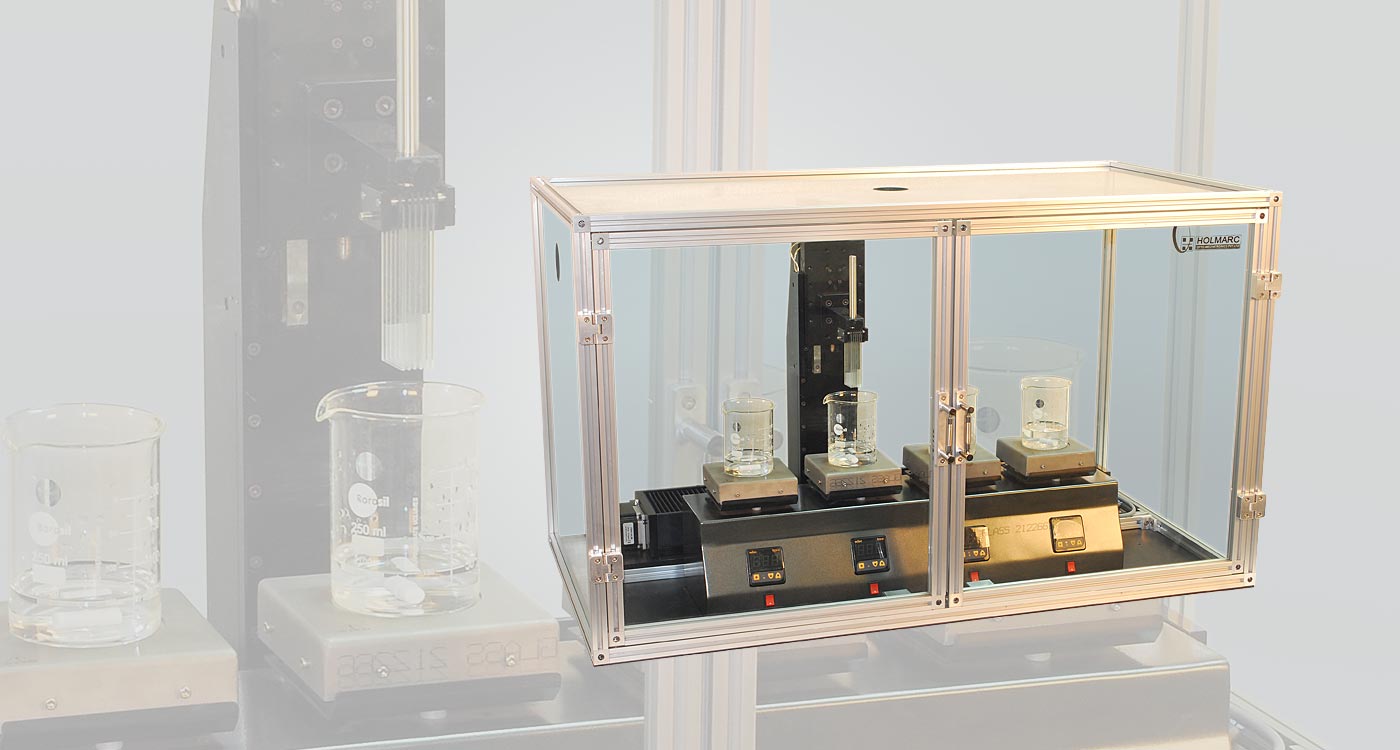

SILAR Coating System with Magnetic Stirrer & Air-tight Chamber – for 4 Beaker

Model: HO-TH-03B
Silar mode and Stirrer mode possible
Magnetic stirrers used to stir the solution

Description

Holmarc’s SILAR Coating System has been designed to automate the entire process to avoid operator fatigue and errors associated with it. In manual SILAR process, the operator has to perform hundreds of repetitive dipping into the solution and water. It is very difficult to control dip duration and number of dips in a manual process which can last hours. In the automated unit, the operator need just to clamp the substrate into the holder and program the controller with required dip cycles and duration.

In this technique thin film is deposited on glass substrate following a chemical technique called successive ion layer adsorption and reaction (SILAR). The technique involves multiple dipping of the substrate in a given solution and deionized water, temperature of both can vary from case to case.

In the Model HO-TH-03B the solution containing beakers are kept on hot plates with magnetic stirrers. The rotation speed of the stirrers can be controlled from 0 – 999 rpm. The dipping speed, dip duration, retrieval speed and dry duration can be set for each beaker. Each hot plate can be set at different temperatures. The temperature can be set up to 200°C from ambient.



Specifications

    Actuator     :     Stepper motor
    Drive mechanism     :     Lead screw
    Dip duration     :     0 – 99 seconds / minutes / hours
    Number of dips     :     1 – 999
    Hot plate temperature     :     Ambient to 200°C
    Stirrer speed     :     0 – 999 rpm
    PC connectivity     :     Serial port (RS 232)
    Stroke length     :     100 mm
    Power input     :     230V, 50Hz
    Weight (appx.)     :     130 Kg
