Ultra (50-100 mJ)

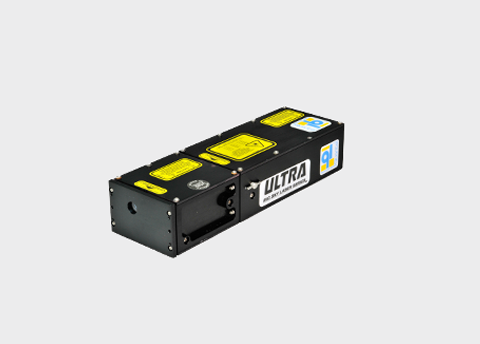

The Ultra laser is a lamp pumped Nd:YAG laser featuring a degree of ruggedization not found in typical scientific lasers. The Ultra design has been vibration tested and each laser is temperature cycled overnight, and tested again before shipping to ensure the laser arrives aligned and ready for use.

  • 1064, 532, 355, 266, 213 nm and 1.57 µm available
  • Alignment guaranteed
  • Quick umbilical disconnects
  • Compact and portable
  • Gaussian or multimode resonators
  • 50 million shots lamp lifetime guaranteed
  • Built to withstand harsh environments

Category:

Description

Model Ultra 20 Ultra 50 Ultra 100
Repetition rate (Hz) ≤ 50 ≤ 20 ≤ 20
Energy (mJ) 1064 nm 20 50 100
532 nm 12 30 55
355 nm 4 12 30
266 nm 4 10 25
1.57 µm – 8 25
Pulse duration (ns) 11 8 8
Dimensions in mm [inches] (H x L x W) Laser head 51 x 170 x 76 [2 x 6.7 x 3]
Power supply 360 x 435 x 133 [14,2 x 17.2 x 5.2]
Weight in kg [lbs] Laser head 0.9 [2]
Power supply 14 [31]



  • Ablation
  • LIBS
  • LIF
  • PIV
  • Ti:Sa pumping
  • etc.
