500 A -100 V Darbeli Güç Kaynağı

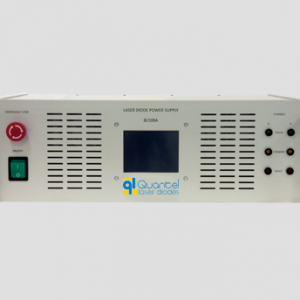

(EN) The power supply generates current pulses (QCW mode) adjustable between 0 and 500 A, with pulse durations from 20 µs to 3 ms, at an average power up to 1000 W. The driver is packaged in a self-cooled 3U rack, which includes the AC/DC convertor and a user-friendly front-panel, touch-screen interface.
- Reliable – Industrial grade components
- Universal AC input: 115-230 VAC / 50-60 Hz
- Diode voltage: 0 to 100 V
- Floating outputs
- 2 channels option, independent (2×500 A) or paralleled (1×1000 A)
- High efficiency: 80% typical from AC input
- Output overvoltage, overcurrent, short-circuit & open circuit protection
- Touch screen functions: pulse parameters, protection level settings, measurement & error readings
- Communication interface: all settings and measures available through I2C, SPI, CAN or Ethernet
