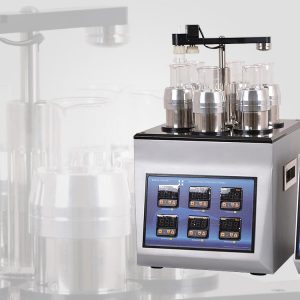

SILAR Coating System with Independent Heater and Stirrer – for 6 Beaker
Model: HO-TH-03
Provision for 6 beakers of 200ml each
Three sample holders with 360 degree rotation

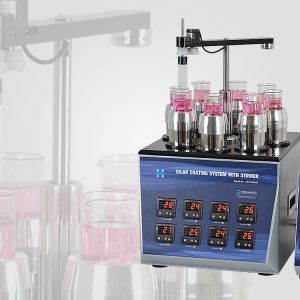

SILAR Coating System with Independent Heater and Stirrer – for 8 Beaker
Model: HO-TH-03A8
Provision for 8 beakers of 100ml each
Hot plate surface for each beaker

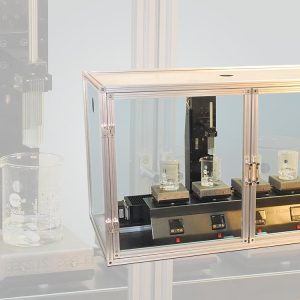

SILAR Coating System with Magnetic Stirrer & Air-tight Chamber – for 4 Beaker
Magnetic stirrers used to stir the solution

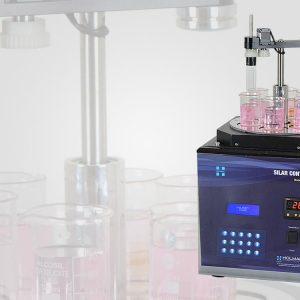

HO-TH-03S SILAR Coating System with Stirrer
Holmarc’s SILAR Controller with Stirrer, Model: HO-TH-03S has a motorized substrate holder which can be used to stir the solution. By rotating the substrate along with the holder at desired speed, the solution can be kept stirred during the dipping process. The rotation speed is programmable from 2 – 200 rpm. The dipping speed, dip duration, retrieval speed and dry duration can be set for each beaker. There is a controlled heater, which is common for 6 beakers and the temperature can be set up to 80°C from ambient. The device is compact and complete with a footprint of 376 x 330 mm.
