5 Axis Objective Mounts

5AMOH Series

Frictionless positioning of lenses
Have linear movements & tilt adjustments in 2 planes

Category:

Description

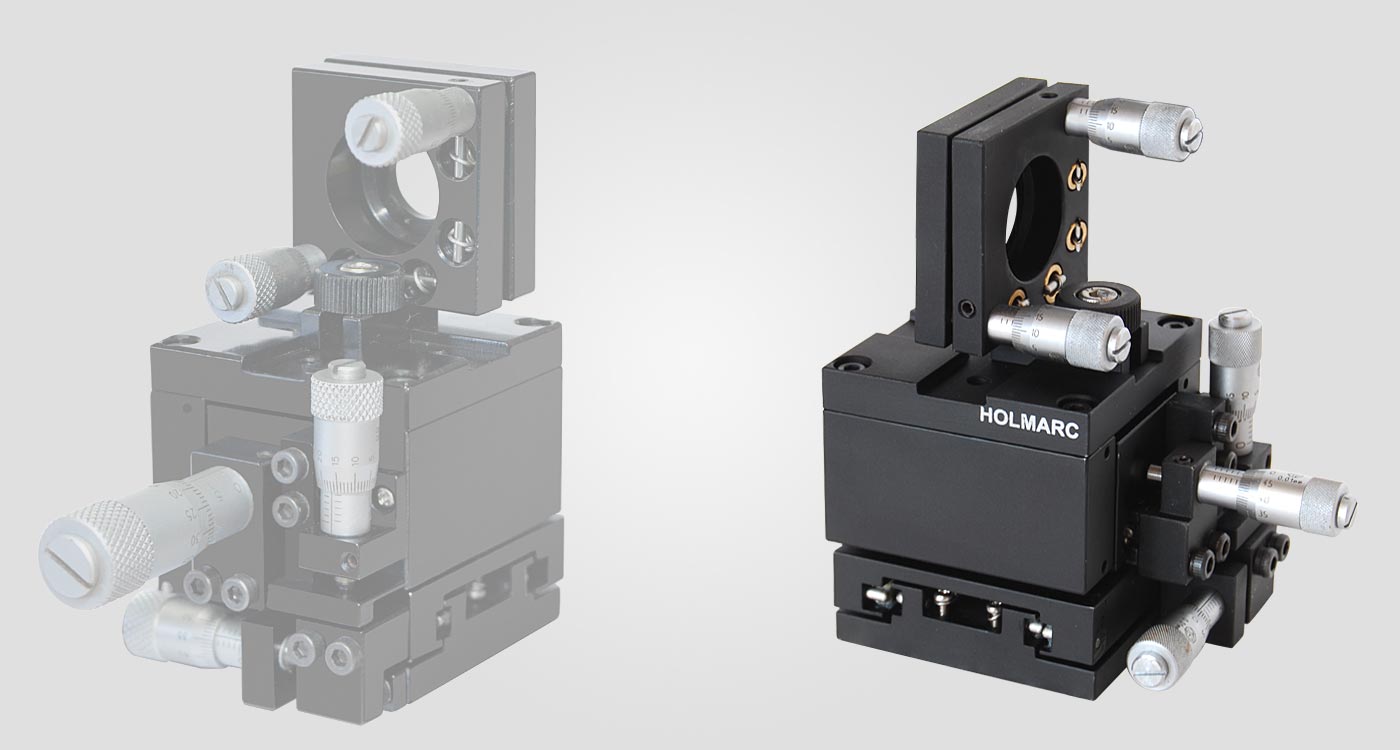

5AMOH series microscope objective mounts have precision movements in five directions. The positioner employs three precision linear stages for X, Y and Z-axes and a kinematic mount for precision tilt adjustments in two planes.For linear stages, precision, preloaded rolling contact ball bearing guideways are used for frictionless and stick-slip free positioning. The device is constructed in aluminium alloy and finished by black anodizing.



Specifications

        10 mm travel in X direction
        6 mm travel in Y&Z direction
        +/-2 degree tilting
        20 arc sec. sensitivity
        Aluminum alloy
        Black anodized finish
        Suitable for PHC – 1 and PHC – 2 series pinholes



Documents / Drawings



Model No. Drawings
5AMOH
