Description

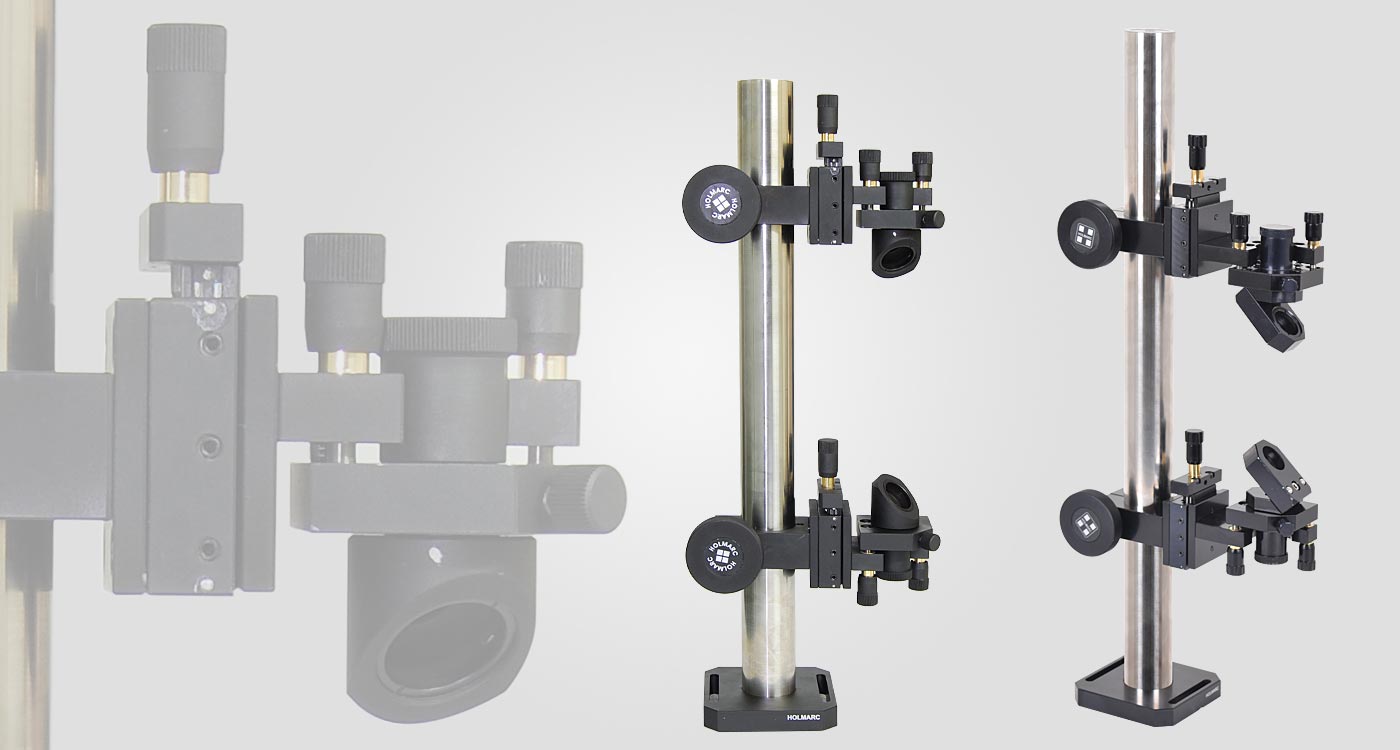

BSD series Beam Steering Device makes use of vibration damped steel post for supporting mirror assemblies. The mirrors can be independently rotated and positioned along the axis which passes through the mirror centers.
There are two models : BSD Series and BSDT Series. In BSDT series, fine height adjustment facility is provided for both mirror assemblies. Height adjustment is possible by a precision linear stage driven by 80 tpi lead screw.
Specifications
| Kinematic Mirror / Prism Holder with Translation |
| 10mm vertical translation |
| Micrometer drive |
| +/- 2.5° tilting |
| Lead screw for tilting |
| 360° rotation with lock |
| Up and down orientations |
| Compatible with heavy duty post |
Magnetic Bases are available and are sold separately
| Kinematic Mirror / Prism Holder without Translation |
| +/- 2.5° tilting |
| Lead screw for tilting |
| 360° rotation with lock |
| Up and down orientations |
| Compatible with heavy duty post |
Kinematic Mirror / Prism Holder with Translation
| Model No. | Optics Size | Optics Type | ||
| BSDT-25 PR | 25 mm / 1″ | Prism | ||
| BSDT-25 MH | 25 mm / 1″ | Mirror | ||
| BSDT-38 PR | 38 mm / 1.5″ | Prism | ||
| BSDT-38 MH | 38 mm / 1.5″ | Mirror | ||
| BSDT-50 PR | 50 mm / 2″ | Prism | ||
| BSDT-50 MH | 50 mm / 2″ | Mirror |
PR series prism holder
Kinematic Mirror / Prism Holder without Translation
| Model No. | Optics Size | Optics Type | ||
| BSD-25 PR | 25 mm / 1″ | Prism | ||
| BSD-25 MH | 25 mm / 1″ | Mirror | ||
| BSD-38 PR | 38 mm / 1.5″ | Prism | ||
| BSD-38 MH | 38 mm / 1.5″ | Mirror | ||
| BSD-50 PR | 50 mm / 2″ | Prism | ||
| BSD-50 MH | 50 mm / 2″ | Mirror |
MH series mirror holder
