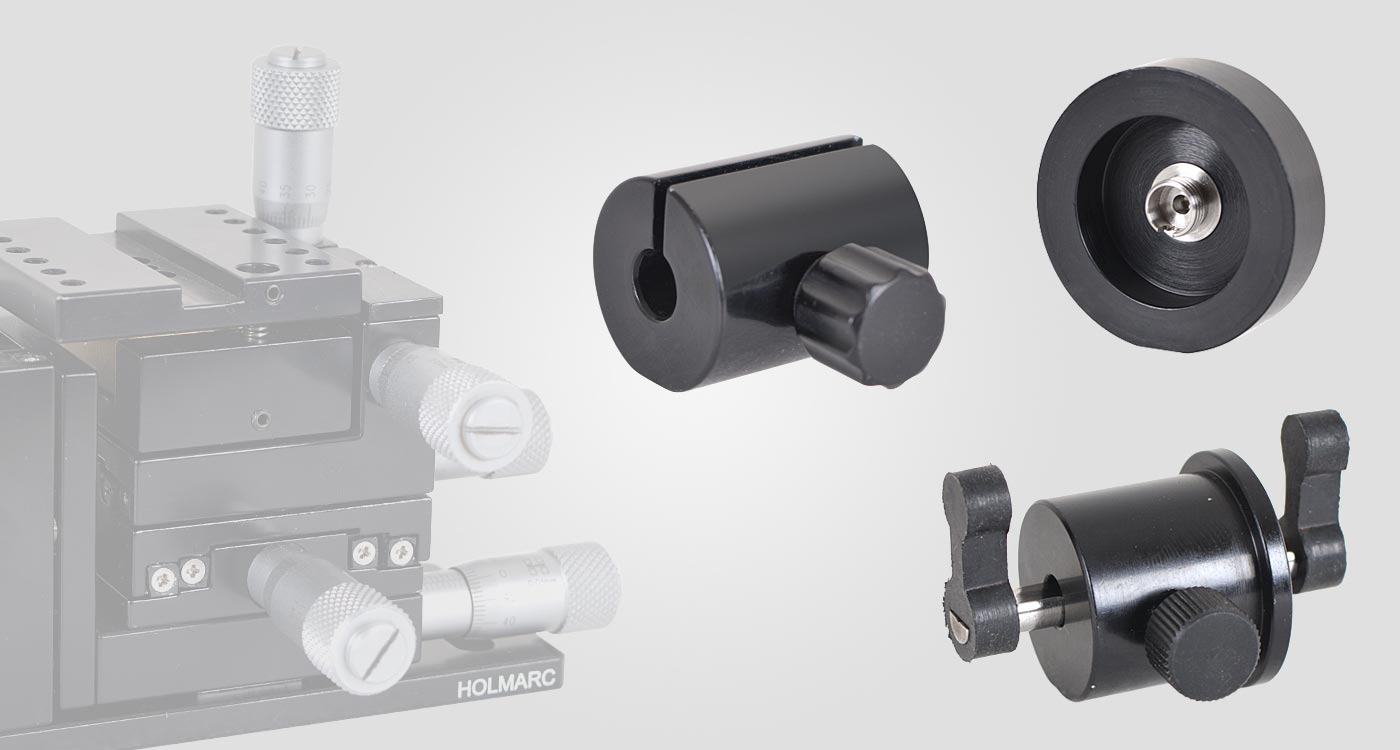

Fiber Positioners

Positioning accuracy upto 5 micron
V grooved rod chucks to hold fibers

Description

Fiber Chuck and Holders

Fiber Chuck – FC – 1 Series

This fiber chuck can be used for mounting optical fibers safely and rigidly. The chuck is a V grooved rod having both ends flattened. Fiber is held in position inside the groove by rubber clamps as shown in the photograph.

Model No. Length L
FC-1-20 20 mm
FC-1-30 30 mm
FC-1-50 50 mm
FC-1-65 65 mm

2 Nos of Rubber clamps supplied with every FC1 Fiber chuck.

Fiber Chuck Holder – FCH Series

Fiber chuck holders helps to mount fiber chucks in a post system.

    Suitable For Bare type and FC, SMA series Fiber Connectors

Model No.
FCH – I – 20

Fiber Chuck SMA / FC / ST Fiber Holders

These holders can be use to mount connectorised fibers.

Model No. Fiber type
FC-SMA SMA Connector
FC-FC FC Connector
FC-ST ST Connector
Threaded Chuck Holder For Fiber Chucks / Connectors

These chuck holders have external threads, suitable for using with many standards mounts as listed below.

    RMS thread / HM1 thread

    Aluminium alloy

    Black anodized finish

    Suitable for RMS / HM1 threaded allignment mounts or adapters

Model No. Thread Connecter / Chuck Type
FCH-TI-FC-1 RMS Fiber Chuck FC1
FCH-TI-SMA RMS SMA Fiber Connector
FCH-TI-FC RMS FC-Fiber Connector
FCH-TI-ST RMS ST-Fiber Connector
FCH-T2-FC-1 HM1 Fiber Chuck Fc1
FCH-T2-SMA HM1 SMA Fiber Connector
FCH-T2-FC HM1 FC-Fiber Connector
FCH-T2-ST HM1 ST-Fiber Connector
Adapters
Adapters for fiber chuck

Adapters is used to hold fiber chuck safely in an optical system. Adapter has counter bored slots for mounting to stages / optical tables.

Model No.
TC-FCH

    Suitable for bare fiber

    Aluminium alloy

    Black anodized finish

    Fiber chuck FC-1 sold separately

    For 6mm dia FC-1 chuck

Adapters for SMA / FC / ST Fiber Connector

This adapter model is made for various standard fiber connectors.

    Suitable for SMA / FC / ST fiber connector

    Aluminium alloy

    Black anodized finish

Model No. Type
TC-SMA SMA connector
TC-FC FC connector
TC-ST ST connector

HM1 / C Mount Threaded Adapter

This adapter model is made for various standard fiber connectors.

Model No. Thread
TC – HM1 HM1 thread
TC – CM C Mount thread

    Suitable for C mount objectives

    Black anodized finish

    Aluminium alloy

    Suitable for HM1 threaded Components ( Lens tube / fiber holder etc… )

RMS Threaded Adapter (For Microscope Objectives)

RMS threaded adapter has inside threads suitable for standard microscope objectives.

Model No. Thread
TC – RMS RMS thread

    Black anodized finish

    Aluminium alloy

    Suitable for microscope objectives / assemblies with RMS thread ( Lens tube / fiber holder etc… )

Clamping Fiber Adapter

This fiber adapter is for fixing bare optical fiber rigidly and safely in an optical system.

    Suitable for bare fiber

    Magnetic clamps

    Aluminium alloy

Model No. Fiber Type
TC-CFA-S Bare Fiber
TC-CFA-L Bare Fiber

Rigid Support

These rigid supports have M4 tapped holes on top and M6 C’ bored holes on bottom.

Model No
TC-RS-76
    10 mm grooved top plate

    Ø6.5 slots for M6 screws

    76 mm height

    Aluminium alloy

    Black anodized finish

XZ Positioner

XZ fiber positioner consists of precision, compact XZ stage with fiber clamping provision through the center of the Z-axis stage. The stages make use of preloaded rolling contact ball bearing guide ways for frictionless and stick-slip free positioning. The positioner is equiped with a fiber chuck and chuck holder to clamp fibers up to1 mm diameter.

    10.1 mm grooved top plate

    6.5 mm dia slots for mountings

    76 mm height

    X Travel 5 mm / 2.5 mm

    Z Travel 5 mm / 2.5 mm

    Aluminium alloy

    Black anodized finish

Drive
Type 1 Type 2
Micrometer
Resolution 10 Micron
Micrometer
Resolution 5 Micron
Positioning Accuracy 5 Micron
Model No. Drive Travel
TC XZ-Mμ 10 Micrometer 10μ 5 mm
TC XZ-Mμ 5 Micrometer 5μ 2.5 mm
XYZ Positioner

XYZ fiber positioner consists of compact XYZ stage with fiber clamping provision through the center of the Z-axis stage. The stage makes use of preloaded rolling contact ball bearing guide ways for frictionless and stick-slip free positioning. The positioner is equiped with a fiber chuck and chuck holder to clamp fibers up to1 mm diameter.

    10.1 mm grooved top plate

    6.5 mm dia slots for mountings

    76 mm height

    X Travel 5 mm / 2.5 mm

    Y Travel 5 mm / 2.5 mm

    Z Travel 5 mm / 2.5 mm

    Aluminium alloy

    Black anodized finish

Drive
Type 1 Type 2
Micrometer
Resolution 10 Micron
Micrometer
Resolution 5 Micron
Positioning Accuracy 5 Micron
Model No. Drive Micrometer Travel
TC-XYZ-R-Mμ10 Micrometer 10μ Right 5 mm
TC-XYZL-R-Mu 5 Micrometer 5μ Right 2.5 mm
TC-XYZ-L-Mμ10 Micrometer 10μ Left 5 mm
TC-XYZL-L-Mu 5 Micrometer 5μ Left 2.5 mm
Five Axis Positioner

Five axis fiber positioner consists of compact 5 axis stage with fiber clamping provision through the center of the Z-axis stage. The stage makes use of preloaded rolling contact ball bearing guide ways for frictionless and stick-slip free positioning. The positioner is equipped with a fiber chuck and chuck holder to clamp fibers up to1 mm diameter.

Drive
Type 1 Type 2
Micrometer
Resolution 10 Micron
Micrometer
Resolution 5 Micron
Positioning Accuracy 5 Micron

    Top plate having 10.1 mm groove

    6.5mm dia slots for mountings

    76mm height

    X Travel 5 mm / 2.5 mm

    Y Travel 5 mm / 2.5 mm

    Z Travel 5 mm / 2.5 mm

    Aluminium black anodized finish

    ø 1 Tilting range ± 2°

    ø 2 Tilting range ± 2°

Model No. Drive Micrometer Travel
TC-5AR-Mu 10 Micrometer 10μ Right 5 mm
TC-5AR-Mu 5 Micrometer 5μ Right 2.5 mm
TC-5AL-Mu 10 Micrometer 10μ Left 5 mm
TC-5AL-Mu 5 Micrometer 5μ Left 2.5 mm
