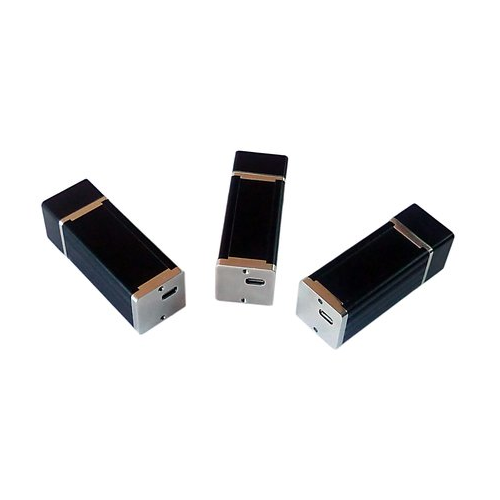

Gamma-Radiation CdZnTe Micro Spectrometer

DESCRIPTION

The μSPEC gamma-radiation micro spectrometer is a high performance device based on application of CdZnTe semiconductor detectors that operate at room temperature and MCA. The μSPEC allows measuring gamma-radiation spectra and storing it for processing in a PC through the USB port. In the spectrometer accepts three different detector modules equipped with quasi-hemispherical volumes of high quality CdZnTe of either 60 mm3, 500 mm3 or 1500 mm3.

The μSPEC is a fully self-sufficient device and consists of the detector, charge sensitive preamplifier, main amplifier, digital signals processor, high and low voltage power supplies and computer interface. It is powered from the computer USB.

Category:

Description

Application

  • Gamma-radiation spectroscopy
  • Environmental monitoring
  • Nuclear power plants
  • Monitoring of nuclear material flow
  • Homeland security

Features

  • Very compact
  • Changeable CdZnTe detectors
  • Digital pulse processing
  • High energy resolution
  • High efficiency
  • High count rate capability
  • USB powered
  • Minimal power requirements
  • Easy-to-use

SPECIFICATION

Parameter Value
Detector type CdZnTe quasi-hemispherical detector
Detector volumes
μSPEC60
μSPEC500
μSPEC1500		 60 mm3
500 mm3
1500 mm3
Energy range 20 keV to 3.0 MeV
Energy resolution (FWHM) at 662 keV
μSPEC60, μSPEC500
μSPEC1500		 < 2.5%
< 3.5%
Maximal throughput > 100 kcps
Number of channels 128, 256, 512, 1k, 2 k
Integral non-linearity < 0.3 %
Shaping equivalent adjustable in the range 0.1…2 μs
PZC adjustment automated
Power supply USB, 4.5 V…5.25 V, 100 mA max
Connector Micro USB, A or B type
Dimensions 25 mm × 25 mm × 70 mm
Weight 80 gram
