He-Ne Laser Mount

Suitable He-Ne Lasers
Provides fine centering adjustability

Category:

Description

This laser holder can be mounted using standard posts having M6 tapped holes. Two posts and post holders have to be used for stability. The device can be directly mounted to breadboards and stages by making use of two M-6 C’bored holes provided at the base.

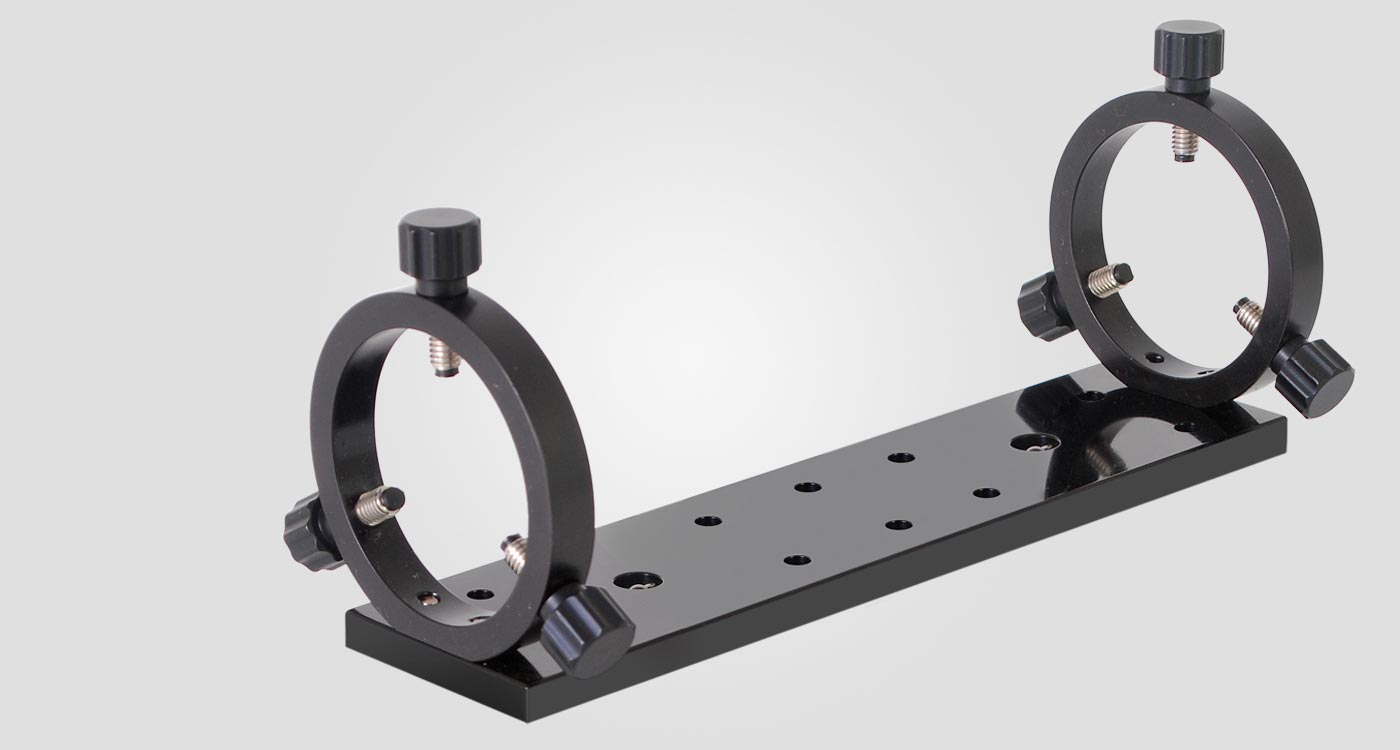

Laser is held inside two rings each having three adjustment thumb screws. Tilt and position can be adjusted by the use of thumb screws.



Specifications

        Aluminium alloy construction
        Black anodized finish



Documents / Drawings



Model No Min Dia Laser (mm)
HeLM – 30 32 mm
HeLM – 50 50 mm
