Description

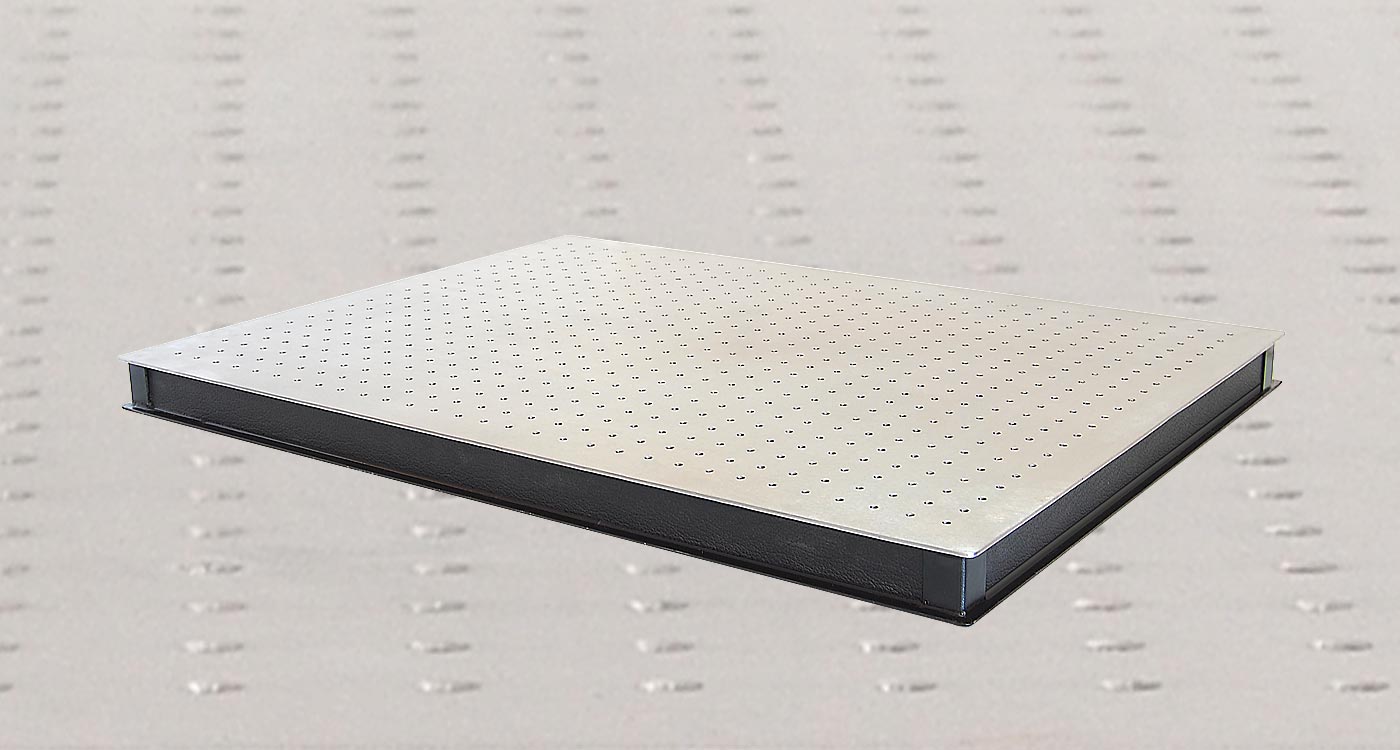

Specifications
Thickness : 60 mm |
3mm thick magnetic SS top skin (SS410) |
Bottom skin made of 2 mm thick epoxy coated aluminium |
Aluminium honeycomb core |
Core cell size of 6 sq. cm.(Approx.) |
Nylon cups under each tapped hole |
+ / – 0.1 mm flatness on top over 300 mm square area |
M6 tapped holes at 25 mm grid |
Semi solid epoxy bonding |
Side walls finished with black form sheet having matte finish |
Compressed wooden particle boards as side walls to damp acoustic vibrations. |
Documents / Drawings
Model No | Length ( cm ) | Width ( cm ) | |
LLBB 60-30 | 60 | 30 | |
LLBB 60-60 | 60 | 60 | |
LLBB 90-60 | 90 | 60 | |
LLBB 90-90 | 90 | 90 | |
LLBB 120-90 | 120 | 90 | |
LLBB 120-120 | 120 | 120 | |
LLBB 180-120 | 180 | 120 |
