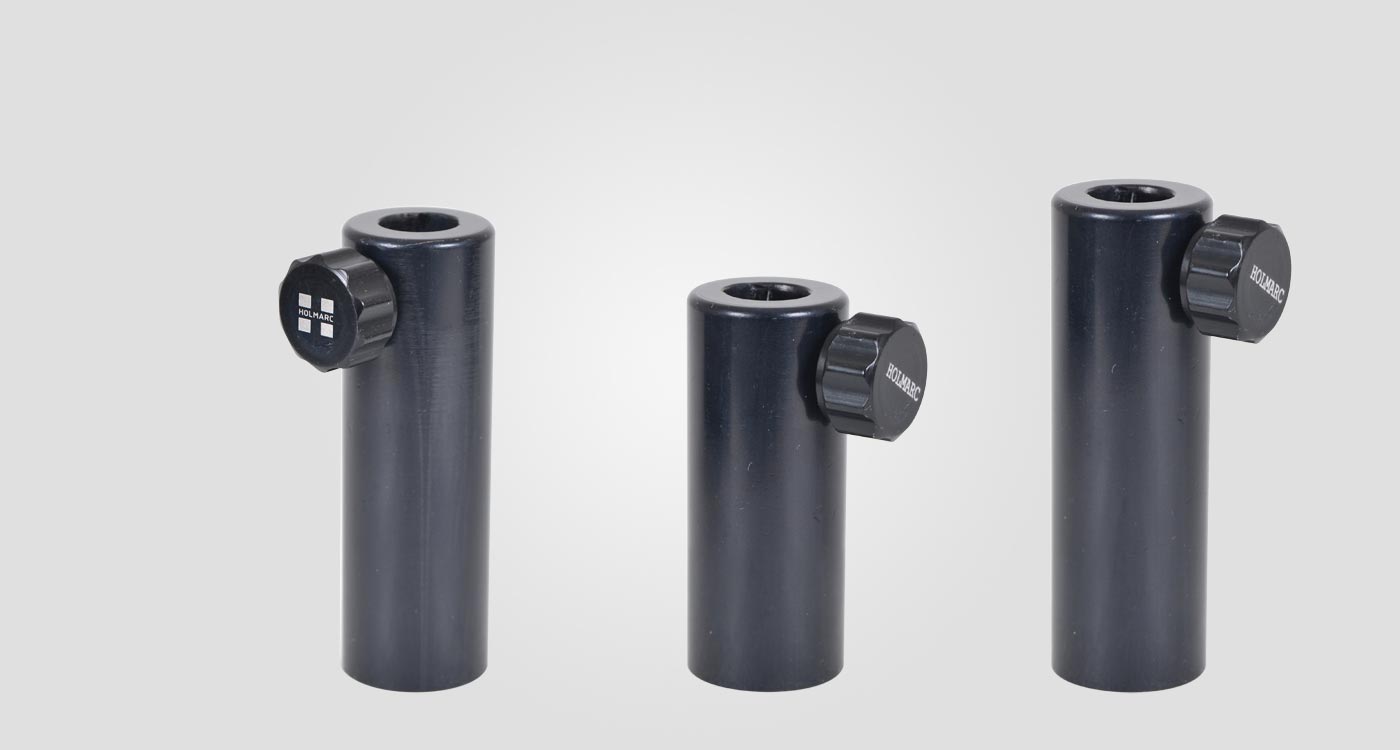

PH-16D Series Post Holders

Suitable for 16mm diameter post
A variety of post heights Available

Category:

Description

These post holders have a square relief cut for stable two line contact with post and post holder. One spring loaded plunger knob is provided with every post holder for smooth up and down movement and stable tightnening at desired position.

We can fix post holders to an optical table, base plate or a pedestal adapter using M6 mounting hole provided at the bottom of the post holder.



Specifications

        Aluminium alloy construction
        Black anodized finish
        M6 mounting hole
        Suitable for 16 mm diameter post
        Through bore



Documents / Drawings



Model No Length ( mm )
PH – 16D – 30 30
PH – 16D – 40 40
PH – 16D – 50 50
PH – 16D – 75 75
PH – 16D – 100 100
PH – 16D – 150 150
PH – 16D – 200 200
PH – 16D – 250 250
