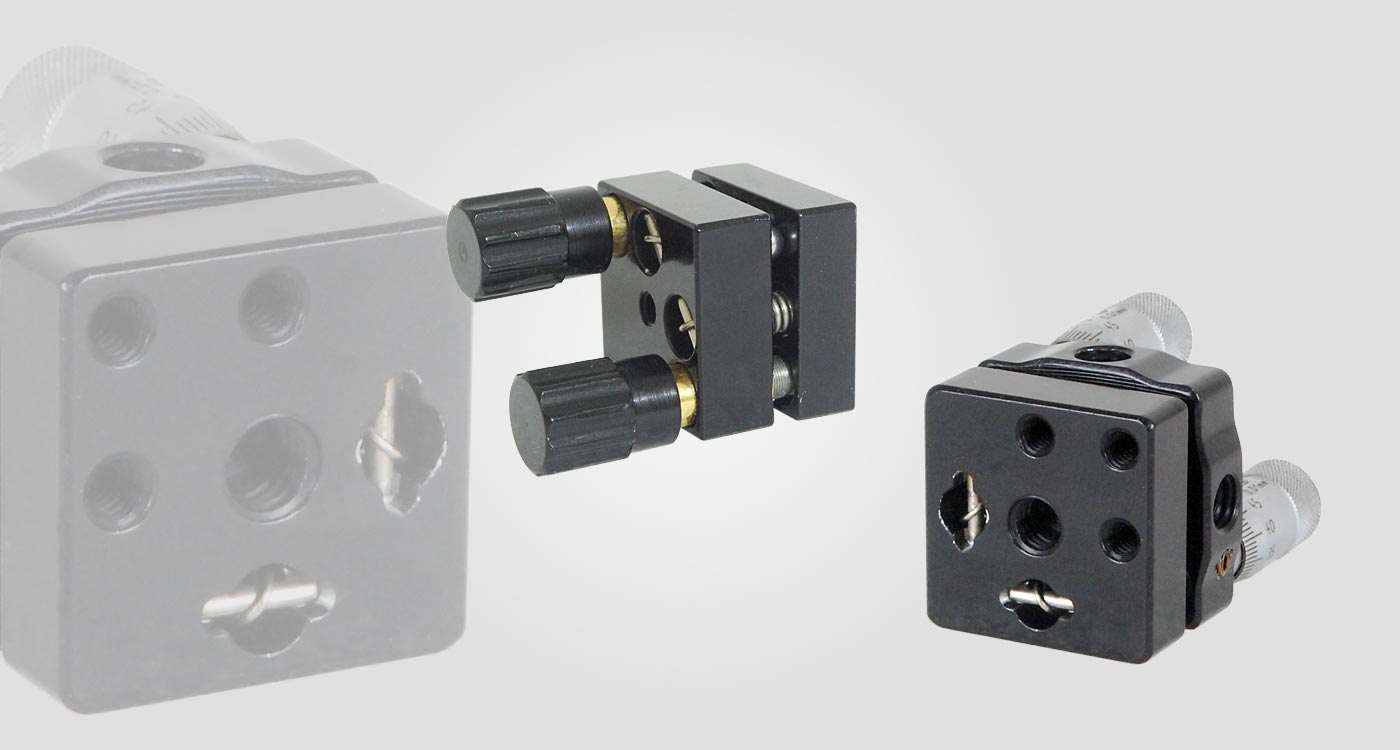

Plain Mirror Mounts

MM Series

Black anodized finish

Lead Screw / Micrometer Drive

Description

Front surface of the mount is plain. Optics can be fixed to the front surface of the mount using adhesive. Two types of plane mirror mounts are available. MM-AK-T series mounts provide translation in addition to tilting. This type of mount has three lead screws, two of them for tilting and third one for translation. Concentric M4 CBR holes and M6 tapped holes are provided at two adjacent sides for vertical mounting of mirror mount.One M6 mounting hole is provided at the back plate for horizontal mounting in prism mounting applications.



Specifications

Angular Tip / Tilt     :     +/- 3°
    Translation Range     :     6 mm ( Selected Models Only )
    Linear Resolution     :     0.25 mm ( 100 Tpi )
    Sensitivity     :     4 arc sec.
    Mounting Hole     :     M6
    Mounting Orientation     :     Vertical & Horizontal
    Material     :     Aluminium



Documents / Drawings



Model No. Optics Size Mounting Hole
MM-CS-25 25 mm or 1″ M6
MM-CS-50 50 mm or 2.0″ M6
MM-Mu-25 25 mm or 1″ M6
MM-Mu-50 50 mm or 2.0″ M6
Plane Mirror Mount with Translation
MM-CS-T-25 25 mm or 1″ M6
MM-CS-T-50 50 mm or 2.0″ M6
MM-Mu-T-25 25 mm or 1″ M6
MM-Mu-T-50 50 mm or 2.0″ M6

CS Series

Mu Series
< < Select your drive
A – 17 ± 3 A – 24.5 ± 3 25 mm or 1″     CS Series – Covered Lead Screw Drive
Mu Series – Micrometer Drive
A – 19 ± 3 A – 24.5 ± 3 38 mm or 1.5″
A – 19 ± 3 A – 24.5 ± 3 50 mm or 2.0″
