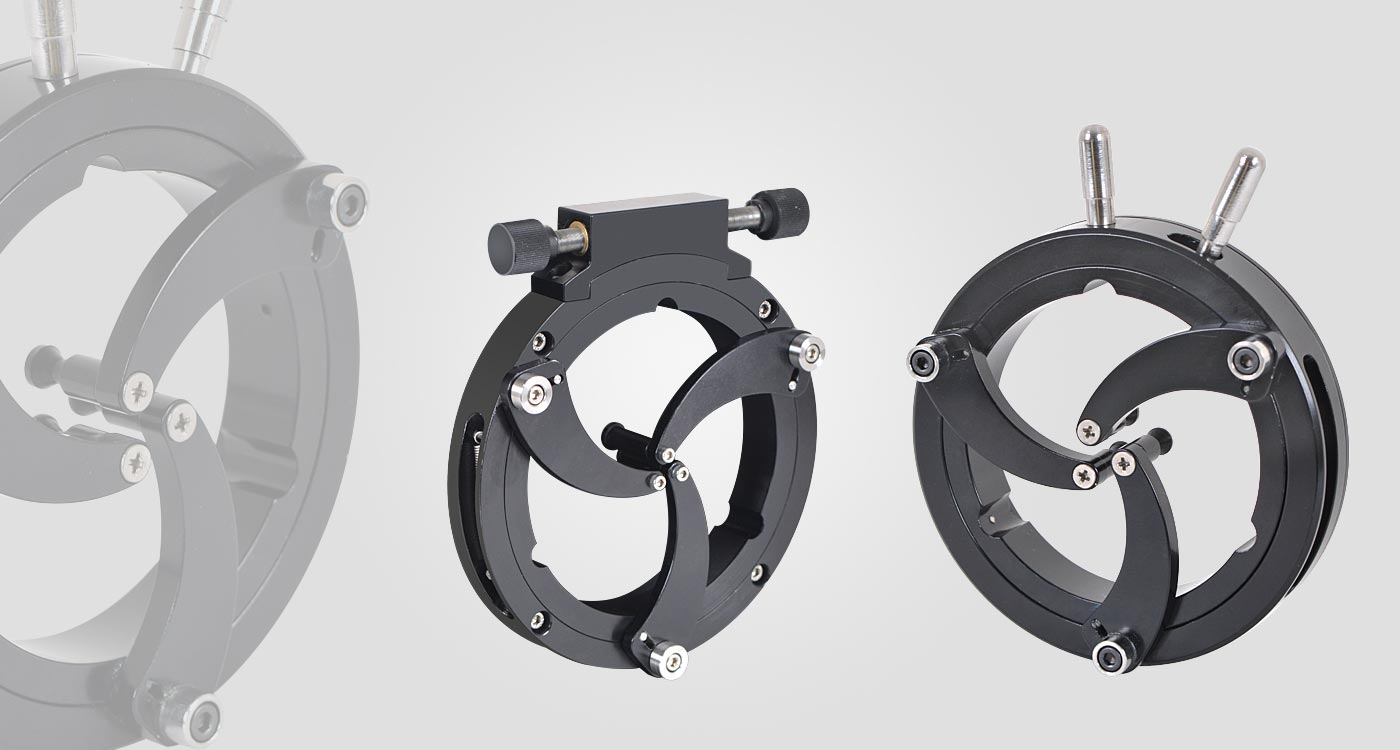

Self Centering Lens Mounts

Micrometer Driven knob
Compatible with optics from 20 to 104 mm diameters

Category:

Description

Self-centering lens mounts are suitable for experiments where frequent replacement of lens is required. The lens is held using three spring loaded calipers. The calipers are released by two levers projecting from the mount. The lens is held in position by spring tension and can be locked in position by a knob.



Specifications

        Self aligning jaws
        M6 mounting hole
        Post mountable
        Aluminium alloy
        Black anodized finish
        Upto 3″ optics can be mounted



Documents / Drawings



Model No Lens Size
Min – Max ( mm )
D1 ( mm ) D2 ( mm ) T (mm)
SCLM – 50 6 – 50 90 ( max – 50 ) ( min – 6 ) 16
SCLM – 75 6 – 75 125 ( max – 75 ) ( min – 6 ) 16
SCLM – 100 6 – 100 125 ( max – 100 ) ( min – 6 ) 16
