Tabletop

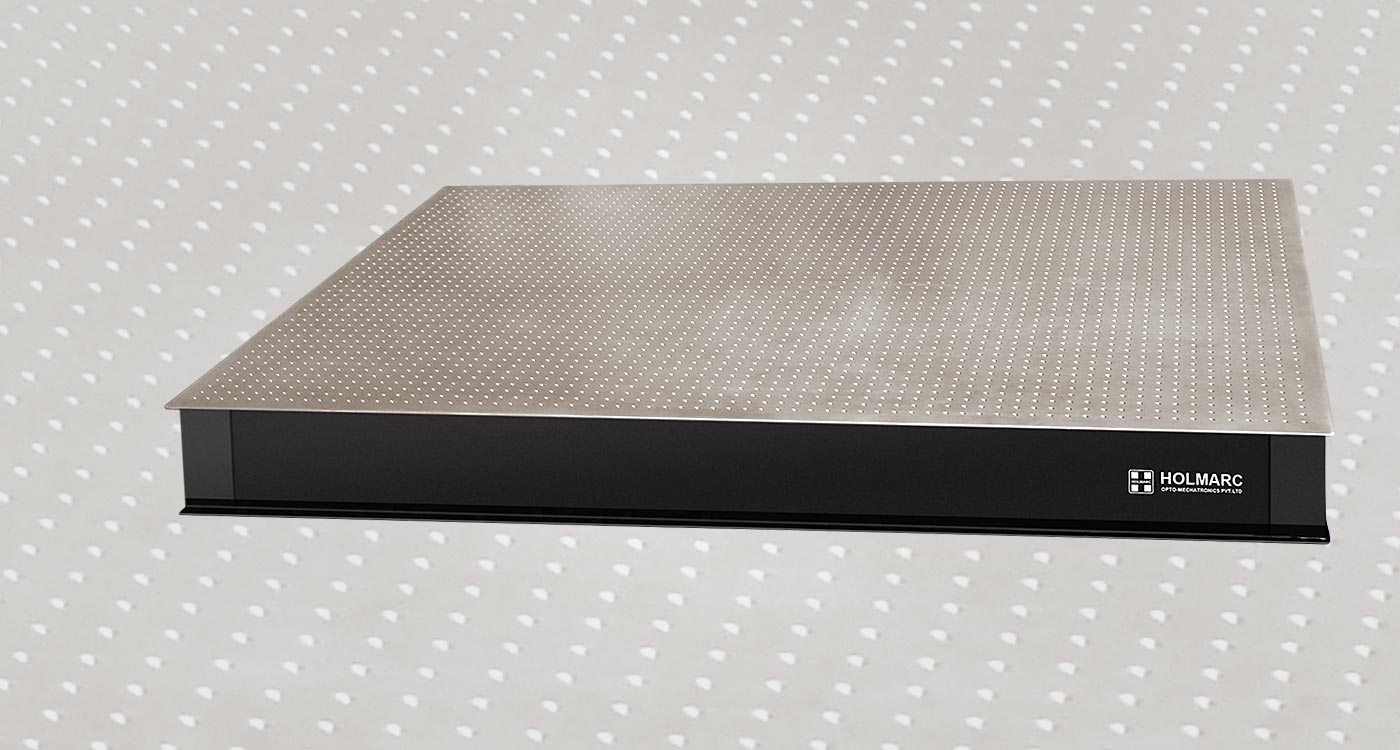

Honeycomb tabletops from Holmarc provide rigid and stable optical working surfaces with the convenience of tapped holes at 25mm grid for mounting components and modules. Honeycomb core made of 0.25mm thick aluminium sheet. Though compressed particle boards are used as side walls in most cases due to its vibration damping properties, Holmarc can also provide tabletops with steel and aluminium side walls. Semi-solid epoxy is used to construct the honeycomb core as well as to bind top and bottom skins to the core. This special epoxy binding absorbs low frequency vibrations to a certain extent and provide considerable damping even without the use of isolated supports.

Description

Specifications



     5 mm thick magnetic SS top skin (SS410)
        Bottom skin made of 5 mm thick epoxy coated steel
        0.25 mm thick aluminium honeycomb core
        Core cell size of 6 sq. cm.(approx.)
        Nylon cups under each tapped hole
        +/- 0.1 mm flatness on top over 300 mm x 300 mm area (non-cumulative error)
        M6 tapped holes at 25 mm grid
        Semi solid epoxy bonding
        Side walls finished with black form sheet having matte finish
        Compressed wooden particle boards as side walls to dampen acoustic vibrations.





Documents / Drawings





Model No Length ( cm ) Width ( cm ) Height ( cm )
TT 90-90 90 90 15
TT 120-90 120 90 15
TT 120-120 120 120 15
TT 180-120 180 120 20
TT 240-120 240 120 20
TT 300-120 300 120 20
TT 180-150 180 150 20
TT 240-150 240 150 20
TT 300-150 300 150 20
TT 360-150 360 150 20
