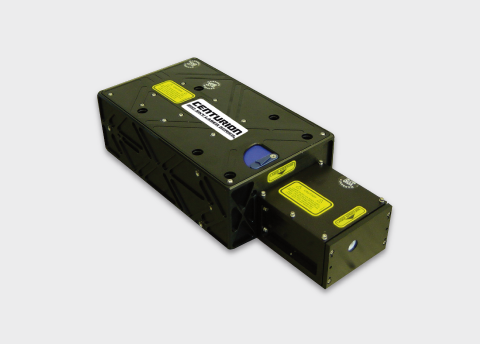

The Centurion was designed for industrial manufacturing applications; diode pumping eliminates the need for service interventions involving lamp changes, or monitoring of water health. Simply install and forget. The Centurion is well suited to variety of bench-top or manufacturing situations where maintenance intervention is difficult or not desired. The Centurion allows the entrepreneur to concentrate on furthering sales without the headache of servicing lasers.
The Centurion operates as a 100Hz laser system delivering pulse energies of 40mJ. Ruggedized through and through, the 1064nm laser can be purchased with one of four dedicated wavelength options: 532nm, 355nm, 266nm or 1574nm. The Centurion head is NitroSealed to prevent optical fouling and will operate over temperature ranges detrimental to most scientific YAGs. The Centurion requires no user alignment or adjustment of harmonics.
An onboard laser brain seamlessly mates any head to any Centurion powersupply making possible hardware exchanges. The Centurion can be mounted in any configuration further simplifying integration.
| Resonator type | Multimode | |
|---|---|---|
| Repetition rate (Hz) | ≤ 100 | |
| Energy (mJ) | 1064 nm | 40 |
| 532 nm | 18 | |
| 355 nm | 6 | |
| 266 nm | 2 | |
| Pulse duration (ns) | 8 | |
| Beam divergence (mrad) | 7 | |
| Dimensions in mm [inches] (H x L x W) | Laser head | 70 x 216 x 128 [2.7 x 8.5 x 5] |
| Power supply | 483 x 457 x 89 [19 x 18 x 3.5] | |
| Weight in kg [lbs] | Laser head | 3.2 [7] |
| Power supply | 13.2 [29] |
Applications
- Ablation
- Process control LIBS
- LIDAR
- LIF
- Mass spectroscopy
- Laser ultrasound
- OPO pumping
- Ti:Sa pumping
- Remote sensing
- etc.
