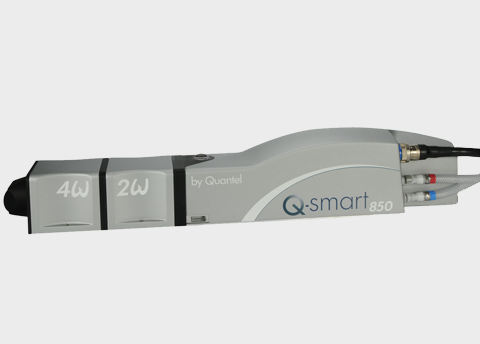

Q-smart (850 mJ)

The Q-smart 850 is the new pulsed Nd:YAG laser from Quantel. Controlled by the Q-Touch pad, it is a high energy, cost-effective laser system. Building on the Brilliant’s modularity and superior beam geometry, the Q-smart laser offers additional user-friendly features.

  • Intuitive touch screen interface
  • Innovative, hands-off harmonic generator phase matching
  • Light, compact, and disconnectable
  • 100 million shot flashlamp lifetime
  • 2-year warranty
  • New : SLM (Single Longitudinal Mode) option available and upgradable on site
  • New : highest energy at 532 & 355 nm with a single doubling crystal

Description

Resonator type GRM
Repetition rate (Hz) 10
Energy (mJ) 1064 nm 850
532 nm 430
355 nm 230
266 nm 100
213 nm 20
Pulse duration (ns) 6
Beam divergence (mrad) < 0.5
Dimensions in mm [inches] (H x L x W) Laser head 147 x 526 x 125 [5.8 x 20.7 x 4.9]
Harmonic modules 99 x 123 x 125 [3.9 x 4.8 x 4.9]
Power supply 513 x 507 x 283 [20.2 x 19.9 x 11.1]
Weight in kg [lbs] Laser head < 7 [15.4]
Power supply 27 [59.5]

Applications

  • Ablation
  • Flash photolysis
  • Holography
  • LIBS
  • LIDAR
  • Cleaning
  • Spectroscopy
  • Photo acoustic imaging
  • OPO pumping
  • etc.
