Description

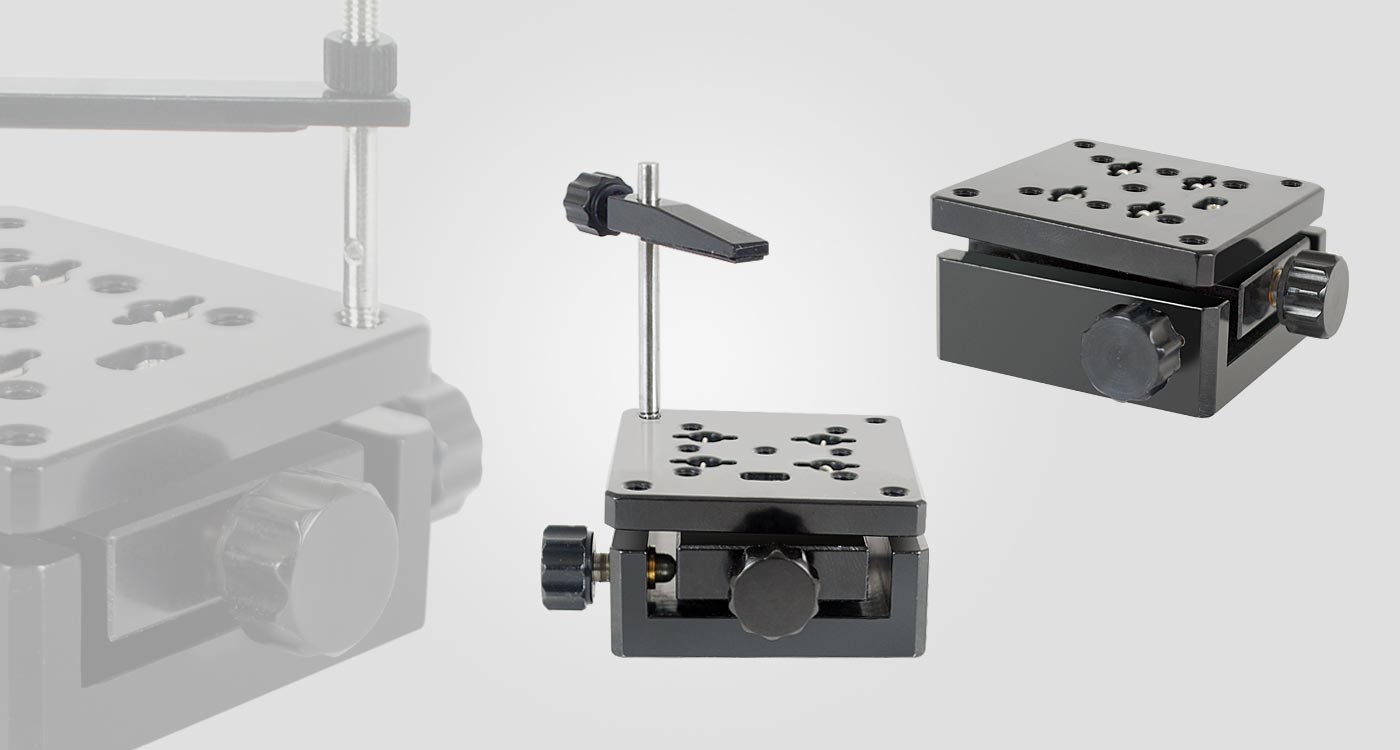

TRS series dual axis tilt platform mounts are available for optics up to 50 mm. M6 and M4 tapped holes are provided on a 12.5 mm grid for mounting various optical or opto-mechanical components over the platform. There are 3 sets of M6 tapped holes at the back plate of platform for post mounting applications. Suitable prism clamps are provided along with kinematic platform.
Specifications
| Angular tip / tilt | : | +/- 3° |
| Translation range | : | 6 mm (selected models only) |
| Linear resolution | : | 0.25 mm |
| Sensitivity | : | 4 arc sec. |
| Mounting hole | : | M6 / M4 |
| Mounting orientation | : | Vertical & horizontal |
| Material | : | Aluminium |
| Finishl | : | Black anodized |
Documents / Drawings
| Model No: | Type | Optic Size | Mounting Hole | ||
| TRS-25 | Dual axis tilt platform mount with Plain Surface |
Upto 38 | M6 | ||
| TRS-50 | Upto 50 | M6 | |||
| TRSS-25 | Dual axis tilt platform mount with Single Post |
Upto 38 | M6 | ||
| TRSS-50 | Upto 50 | M6 | |||
| TRSD-25 | Dual axis tilt platform mount with Dual Post |
Upto 38 | M6 | ||
| TRSD-50 | Upto 50 | M6 |
