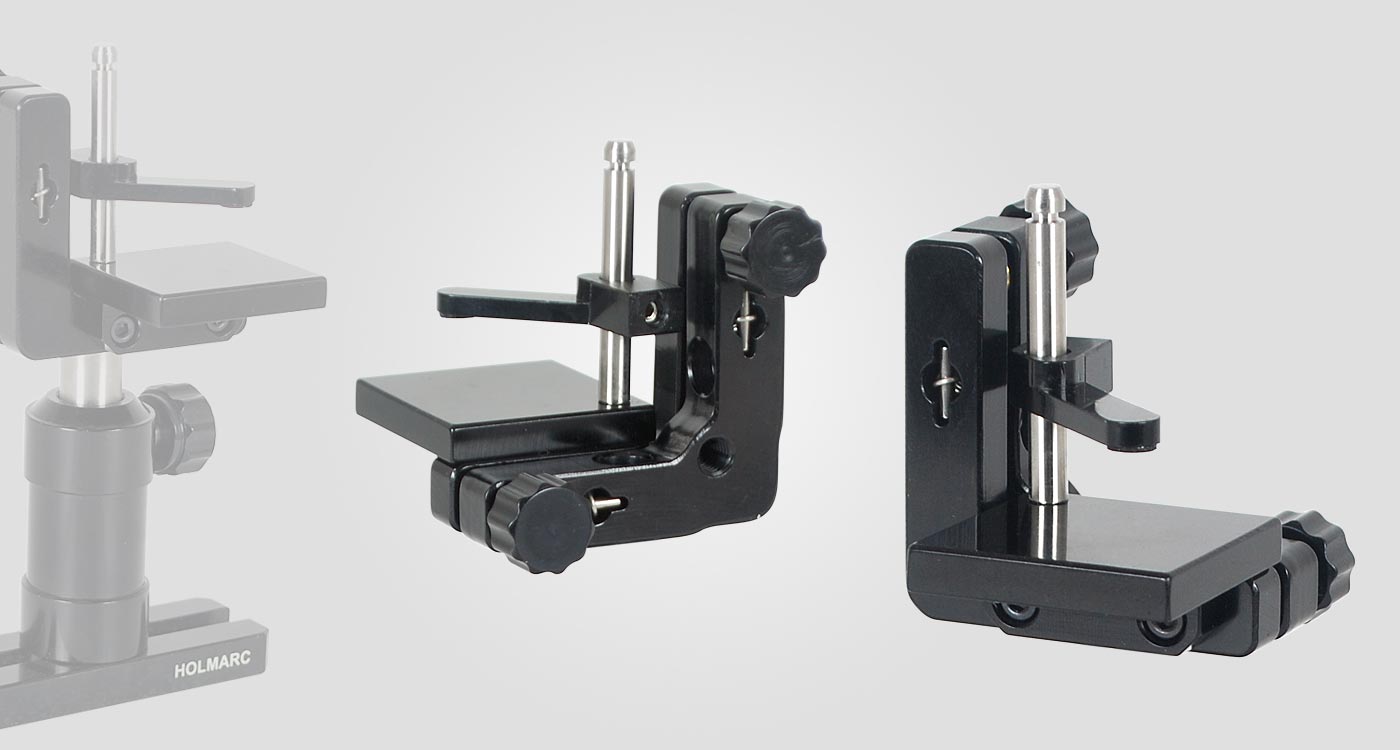

Kinematic Prism Mount

KTM Series

Detachable platform
Left right orientations possible

Category:

Description

KTM SeriesKTM series kinematic prism mounts enable horizontal & vertical mounting. Left / Right orientations can be easily arranged using detachable platform. Suitable prism clamps are provided along with kinematic prism mounts. Tilt adjustment screws have 0.25 mm / rev. pitch threads. Construction material is aluminium with black anodized finish. M6 / M4 mounting options are provided for fixing it with standard 12 mm or 16 mm posts.



Specifications

    Angular tip / tilt     :     +/- 3°
    Translation range     :     6 mm (selected models only)
    Linear resolution     :     0.25 mm
    Sensitivity     :     4 arc sec.
    Mounting hole     :     M6 / M4
    Mounting orientation     :     Vertical & horizontal
    Material     :     Aluminium
    Finishl     :     Black anodized

Documents / Drawings



Model No Optic Size Mounting Hole
KTM-25 Upto 1″ / 25 M6 / M4
KTM-50 Upto 2″ / 50 M6 / M4
Kinematic mirror mount with rectangular optics with translation
KTM-T-25 Upto 1″ / 25 M6 / M4
KTM-T-50 Upto 2″ / 50 M6 / M4
