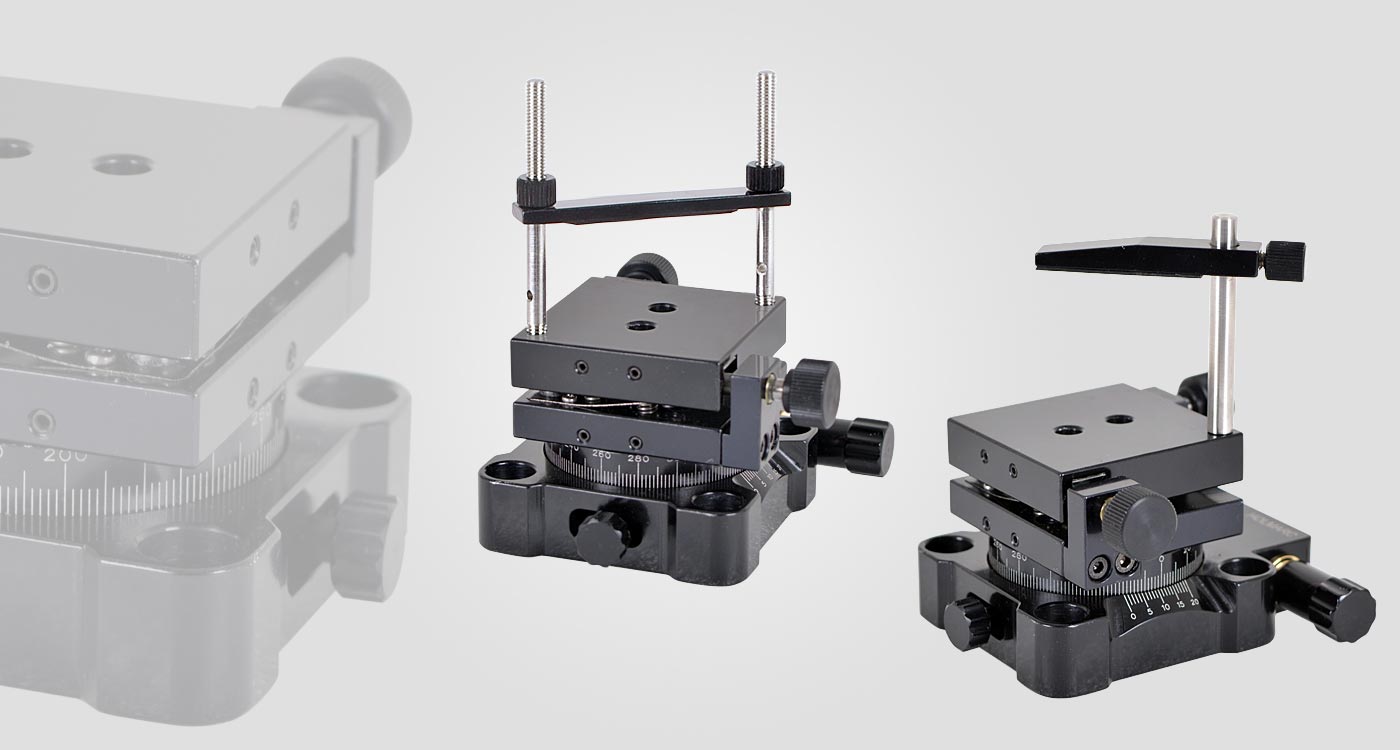

Tilt and Rotation Stage

PMRP Series

Offers three degrees of freedom
Platform with plain surface, single post & dual post

Category:

Description

PMNP-R series prism/cube mounts have three degrees of freedom, two tilt and one rotation. M6 C’bored holes are provided at the base forn mounting to breadboard with suitable base plates. Prism or cube can be placed on the top of the plane surface of this mount.



Specifications

    Angular tip / tilt     :     +/- 3°
    Translation range     :     6 mm (selected models only)
    Linear resolution     :     0.25 mm
    Sensitivity     :     4 arc sec.
    Mounting hole     :     M6 / M4
    Mounting orientation     :     Vertical & horizontal
    Drive     :     Lead screw
    Material     :     Aluminium



Documents / Drawings



Model No: Type Optic Size Thickness ( T )
PMRP-CS-25 Plain Surface Upto 1″ 21 mm
PMRP-CS-38 Upto 1.5″ 24 mm
PMRP-CS-50 Upto 2″ 24 mm
PMRS-CS-25 Single Post Clamp Upto 1″ 21 mm
PMRS-CS-38 Upto 1.5″ 24 mm
PMRS-CS-50 Upto 2″ 24 mm
PMRD-CS-25 Dual Post Clamp Upto 1″ 21 mm
PMRD-CS-38 Upto 1.5″ 24 mm
PMRD-CS-50 Upto 2″ 24 mm
