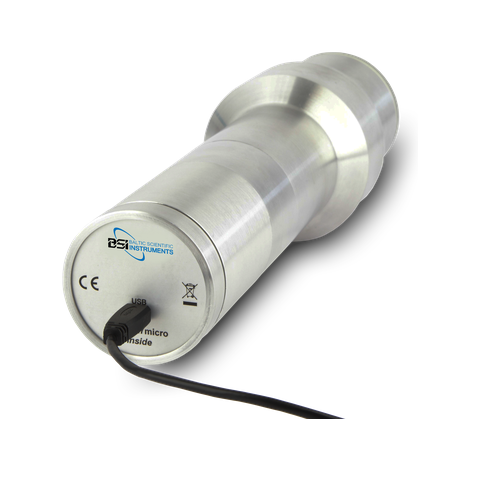

Gamma Spectrometer All-In-One based on NaI Detector

DESCRIPTION

Gamma Spectrometer combines NaI(TI) crystal of different sizes, a photomultiplier tube, a high voltage power supply, a preamplifier and a multi-channel analyzer module mounted within a rugged housing.

The whole system is entirely powered from the USB interface. Due to the integration of all hardware components required for a gamma spectroscopy system in one package, only one USB cable is required to connect the detector to a computer. This simplifies use and lowers the total costs of the gamma spectrometer.

The gamma spectrometer is operated with GammaPRO software package. The only requirement is that the host computer has an integrated USB high power hub or host port.

The Gamma spectrometer based on NaI detector is available with following detector dimensions:

  • 51mm x 51mm (2″ x 2″)
  • 63mm x 63mm (2.5″ x 2.5″)
  • 76mm x 76mm (3″ x 3″)

Description

Features

  • Entirely powered from USB Interface
  • Low power consumption
  • Well suited for laptop operation
  • Small size, compact housing
  • Only one cable required for operation
  • High Integration
  • Useable with many application programs
  • Easy to use
  • Low price

COMPLETE SET

  • Gamma spectrometer based on NaI detector
  • GammaPRO software package
  • 2m USB cable
  • Documentation

Optional accessories:

  • Tripod
  • Lead shield
  • Marinelli beakers, etc.

SPECIFICATION

Parameter Value
Crystal Size 63mm x 63mm
Energy Resolution (FWHM @ 662keV) 6.2% typ. / 7% max
Energy Range 20keV to 3MeV
Number of Channels 128, 256, 512, 1024, 2048
Digital Filter adjustable
Maximum Throughput >100,000cps
Special Features – Integrated Temperature Sensor
– MCS-mode
Computer Interface USB2.0 compliant, Micro-B Receptacle
Power Supply entirely powered from USB
Power Consumption (typical) <1W (Idle / Measurement)
Dimensions 83.5mm x 296mm
Operating Temperature Range 0°C to 40°C
Weight 1350g
