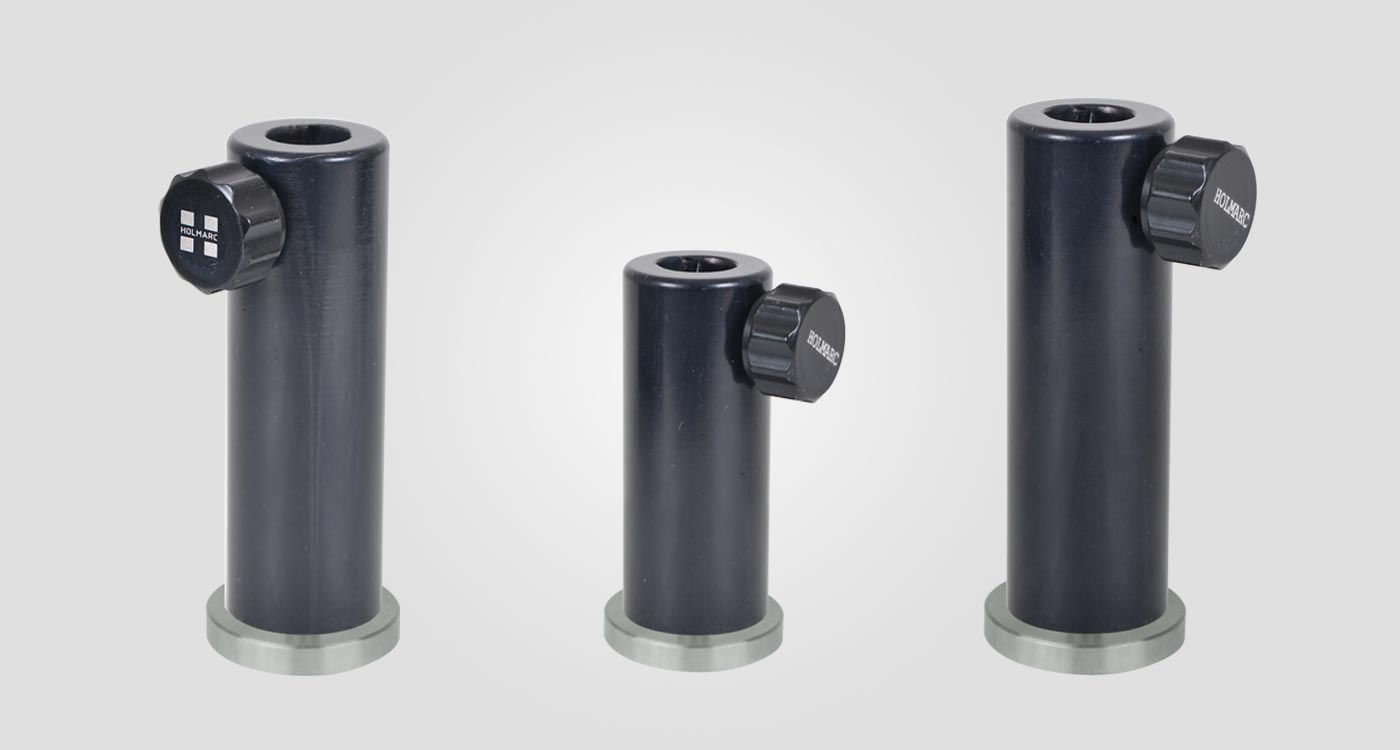

PPH Series Pedestal Post Holder

Black anodized finish
Compatible with Model: PF-25 STD fork

Category:

Description

PPH – 16D series Post holders have a stainless steel pedestal foot of thickness 5 mm. The posts will sit down to minimum height compared to our regular PH – 16D series Post holders. A square relief cut is also provided for better clamping. One spring loaded plunger knob model : PGK-20 is fixed with every pedestal post holder. Pedestal post holders are made in aluminium alloy material with black anodized finish. Bottom of pedestal post holders is provided with a through bore of 16 mm diameter.



Specifications

        Square relief cut
        Through bore
        5 mm thick pedestal foot
        Plunger knob
        Aluminium alloy construction
        Black anodized finish
        Suits P16D posts
        Compatible with PF – 25 pedestal fork



Documents / Drawings

Model No Length (mm)
PPH-16D-30 30
PPH-16D-40 40
PPH-16D-50 50
PPH-16D-75 75
PPH-16D-100 100
PPH-16D-150 150
PPH-16D-200 100
PPH-16D-250 150



Plunger knobe

Model    :    PGK-20

Plunger knobeis a brass plunger, loaded with a suitable spring, inside M6 stud. This plunger knob prevents posts from sudden falling while loosening the knob for removing the post or adjusting height in an optical set up. Only one hand is required for any operation using post and post holder.
