Description

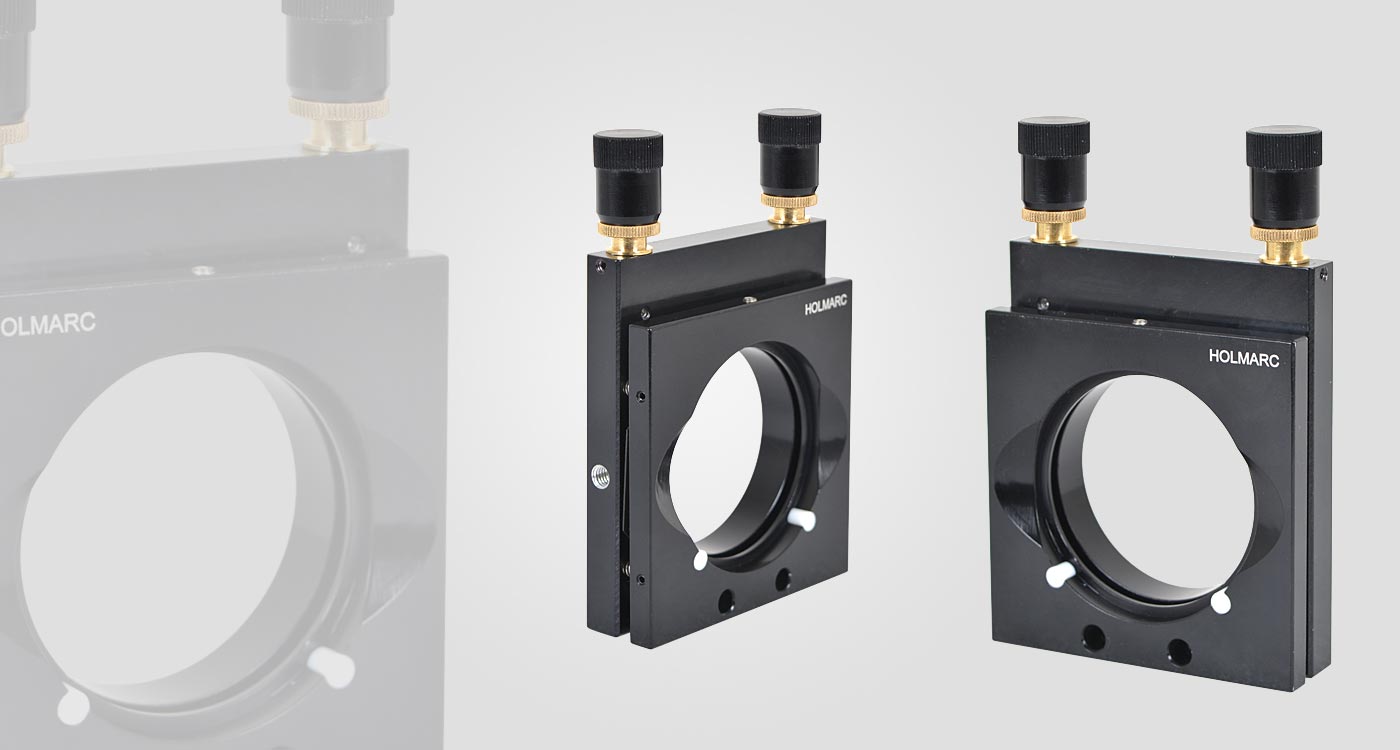

Top adjustable mount helps tilting of optics without causing any obstruction to the beam and takes less space compared to rear adjustable mirror mounts. Optics is held in a stepped bore and tightened by nylon tipped set screw.
Specifications
| Angular Tip / Tilt | : | +/- 3° |
| Translation Range | : | 6 mm ( Selected Models Only ) |
| Linear Resolution | : | 0.25 mm ( 100 Tpi ) |
| Sensitivity | : | 4 arc sec. |
| Mounting Hole | : | M6 |
| Mounting Orientation | : | Vertical & Horizontal |
| Material | : | Aluminium |
Documents / Drawings
| Model No. | Optics Size | Mounting Hole | ||
| TABM-CS-25 | 25 mm or 1” | M6 | ||
| TABM-CS-50 | 38 mm or 1.5” | M6 | ||
| TABM-CS-75 | 50 mm or 2.0” | M6 | ||
| TABM-Mu-25 | 25 mm or 1” | M6 | ||
| TABM-Mu-50 | 38 mm or 1.5” | M6 | ||
| TABM-Mu-75 | 50 mm or 2.0” | M6 | ||
 CS Series |
 Mu Series |
< < Select your drive | ||
| A – 17 ± 3 | A – 24.5 ± 3 | 25 mm or 1″ | CS Series – Covered Lead Screw Drive Mu Series – Micrometer Drive |
|
| A – 19 ± 3 | A – 24.5 ± 3 | 38 mm or 1.5″ | ||
| A – 19 ± 3 | A – 24.5 ± 3 | 50 mm or 2.0″ | ||
