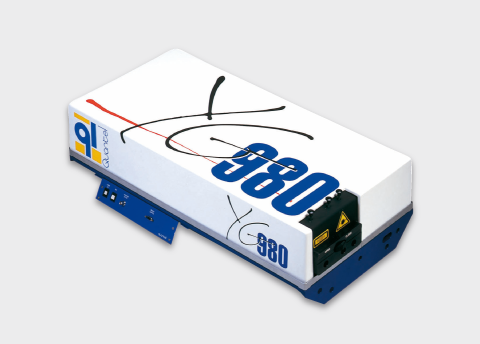

YG 980 (650-2500 mJ)

The YG 980 series combines an Nd:YAG oscillator with up to two amplifiers, and features up to 2.5 J of pulse energy, excellent beam quality and high stability.

  • 1064, 532, 355, 266 and 213 nm available
  • Temperature stabilized bench
  • Fast photodiode for pulse visualization
  • Automatic harmonic selection
  • Linewidth: 0.003 cm-1 with SLM option

Temperature controlled harmonic generators with motorized tuning provide the user wavelength modularity down to 213 nm. Narrow linewidth options, including Single Longitudinal Mode (SLM) operation, as well as higher repetition rates are available to meet your application requirements.

Description

Model YG 981 YG 981E YG 982C YG 982E
Repetition rate (Hz) 10 50 10 30 10
Energy (mJ) 1064 nm 650 500 1600 1500 2500
532 nm 320 170 820 700 1250
355 nm 140 85 490 420 850
266 nm 60 30 150 105 230
1064 nm 6 – 8 8 – 11 8 – 11 8 – 11 9 – 12
Dimensions in mm [inches] (H x L x W) Laser head 280 x 860 x 430 [11 x 33.9 x 16.9] 1150 x 430 x 280 [45.3 x 16.9 x 11]
Power supply 700 x 800 x 550 [27.6 x 31.5 x 21.7] 890 x 800 x 550
[35 x 31.5 x 21.7]
1150 x 800 x 550
[45.3 x 31.5 x 21.7]

The YG 980 family of high energy Nd:YAG lasers are built on a platform of oscillators plus amplifiers. These reliable and versatile lasers are capable of generating energies of up to 2.5 J with superior beam quality and high stability. Motorized and temperature-controlled harmonic generators allow the user to easily switch between wavelengths ranging from the fundamental Nd:YAG wavelength of 1064nm to the fifth harmonic of 213 nm. A range of repetition rates and narrow linewidth options, including Single Longitudinal Mode (SLM) operation, are available to meet your application requirements

Applications

  • Ablation
  • Flash photolysis
  • Holography
  • Interferometry
  • LIDAR
  • PLIF
  • LIF
  • PIV
  • Laser peening
  • Spectroscopy
  • Combustion
  • CARS
  • Shockwave generation
  • OPO pumping
  • Dye laser pumping
  • Crystals pumping
  • PLD
  • Photochemistry
  • etc.
