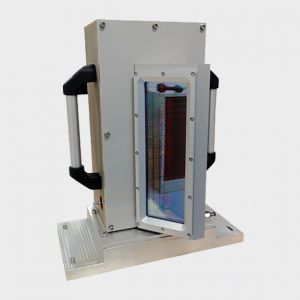

High Efficiency High Power Diode Laser Source
The new diode source integrates high reliable 500W bars. The hermetical package is design to separate the liquid circuit and the active diodes. No liquid can be in touch with the diode avoiding major damage in case of water leakage. Electrical connectors as well as liquid connectors are attached in the back panel side. The diode emits from the front panel side through a IR-AR coated glass window. N² pressurization is requested to maintain low HR.
- Up to 120 kW in one line @ 940 & 980 nm
- Up to 250 kW @ 880 nm
- Up to 1 MW in 8 lines matric array
- 880, 940 and 980 nm available
- Driver available in a separate rack or integrated to the source for 100 kW version
- Operating with non DI water from +10°C to +40°C
- Bar pitch 400, 800 or 1.2 mm upon energy per pulse
- Lifetime warranties from 1 to 10 Gshots upon energy per pulse
High-Voltage Amplifiers
These amplifiers provide high amplitudes and bandwidths, and are well suited for use as booster amplifiers for lower-voltage arbitrary waveform generators.
High-Voltage Time-of-Flight Pulsers
Avtech offers a variety of pulsers suitable for time-of-flight applications.

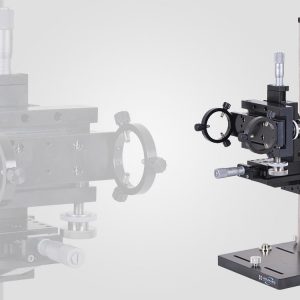

Height Adjustable XZ Tilt & Rotation Laser Mount
Fine XY Adjustable Versions
Up & down orientations for Lasers

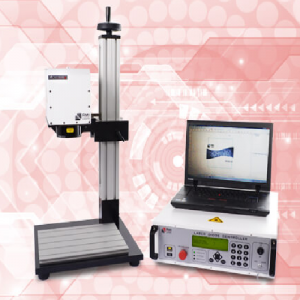

YV04 Laser Series
YVO4 Laser Series
Our DPSS (Diode-pumped solid state) Lasers utilize Nd:YV04 technologies, creating many advantages over other lasers. They can produce a precise mark without using large, external power supplies, which is energy-efficient. YV04 lasers can achieve a smaller spot size and higher energy density, which is ideal for reflective surfaces. RMI Laser’s YV04 Laser Series comes with the world’s most compact marking head for easy integration into a variety of process flows and configurations, and an industry leading 3-year warranty and loaner program.
They are by far our most versatile laser marker machines because they can anneal metals, ablate coated metals, and color change or foam plastics all with a single laser system. If versatility is what you need, then this is the laser system for you.
The YV04 Laser Series Systems have a very short pulse duration, making them ideal for sensitive marking applications where direct part marking can cause surface degradation. Users can mark directly onto the parts without concern for surface damage, HAZ (heat-affected zones), structural degradation, recasting or stress risers.
The newest systems in the RMI Laser YV04 Laser Series are the A-10 and A-20. Expanding upon the technology and components from the current U-Series, the A-10 and A-20 have added application capabilities. The beam is specifically tuned to uniformly distribute energy making it optimal for annealing and ablating. This laser is strong enough to create dark marks on metals and is sensitive enough to get a color change on plastics without any foaming. The new laser systems have higher power and more stability than its predecessors along with having unmatched marking quality.

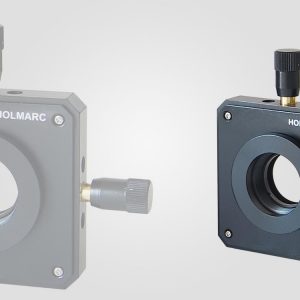

YZ Lens Mounts/Objective Lens Mounts
Spring loaded lead screws
Can mount lenses with different diameters
Attenuators
Avtech offers a limited range of fast-pulse accessories designed for use with both general-purpose and Avtech sub-nanosecond pulse generators.
