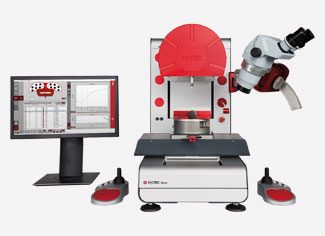

Sigma Lite
The Sigma Lite is a low cost of ownership bondtester that grows with your company. It offers a low-cost entry point by giving up some of the above Sigma features. It is possible to upgrade to a full Sigma later.
Automation
A Sigma is modular by design and comes with full automation capabilities. The Revolving Measurement Unit (RMU) houses up to 6 sensors that enables continuous testing. The software includes vision and deep learning technology to eliminate human errors.

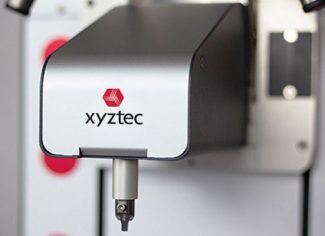

Single test heads
You can also equip the Sigma with single heads for shear (SMU) or for Push and Pull (PMU). All test heads come with the same specifications as the RMU in terms of maximum forces and accuracy. There is no need to readjust the microscope when you do switch cartridges. They all share the same test point.
Data export
Improve data processing using automatic export and SECS/GEM for tracking and control.
No more cartridge exchanges
The Revolving Measurement Unit (RMU) houses up to 6 flexible sensors that are configurable with various pull, peel, push, or shear tools. This enables continuous testing up to 200 kgf.
Control your alignment
Tweezers
You can control the gripping force and the opening and closing position. There is a choice of 3 types of tweezers:
- Electric (USB)
- Mechanical
- Pneumatic
Your sample fits, too!
- Quick release work holders
- Maximize your throughput
- Accurate alignment
- Wide selection and customized clamping solutions
- High axis speed, direct-drive motor, linear encoders
- Secure lock maintains reproducible positioning
A pleasure to set up
- Easy sample access
- Flexible LED lighting options
- Designed with the operators in mind
- Adjustable microscope
- No stress working conditions
Easy to use for everyone
- Flexible on-board Statistical Process Control (SPC) analysis
- Unique form features for SPC management
- Software has Easy and Expert modes
- Control chart and real-time force graphs
- Flexible export and SECS/GEM
Modular by design
- Customized tools and work holders
- Operator free loading options
- Powerful camera options
Specifications Sigma
| STAGES | SIGMA |
|---|---|
| X-stage (mm) | 370 |
| Y-stage (mm) | 168 |
| Z-stage (mm) | 168 |
| Axis speed (mm/s) | 50 |
| Resolution linear encoders (backlash free drives) (nm) | 30 |
| Digital temperature correction |  |
| ACCURACY | |
| Accuracy (%) | 0.075 |
| ADC resolution (bit) | 24 |
| Sampling frequency (kHz) | 10 |
| Shear height (step back) accuracy ±1 μm | |
| Programmable landing force down to 5 gf | |
| MECHANICAL | |
| Footprint X (mm) | 620 |
| Footprint Y (mm) | 558 |
| Height (mm) | 608 |
| Weight (± kg) | 80 |
Please contact us for more information and options for your factory. Specifications are subject to change without prior notice.
