Class 1 Large/Extra Large Enclosure

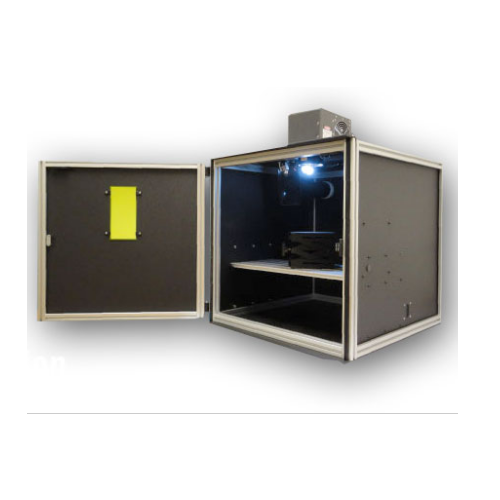

The Class I Large & Extra Large Enclosures are our most popular designs of all time. They are simple, rugged and versatile. If you are marking large parts or use one of our higher-powered lasers, this enclosure is a great choice.  Despite the large size, it can be easily moved on a roll cart anywhere in your facility. It is also very easy to use. An external focusing diode makes creating a great mark on your part a breeze. There is also internal illumination to verify marking quality and viewing windows to monitor marking.

If your goals are to maximize ROI and give yourself the most versatility possible from your laser marker the large enclosure is the right choice for you.

Category:

Description

Specs

Class I Portable Enclosure Class I Sliding Door Enclosure Class I Large Enclosure Class I Extra Large Enclosure Class I Rotary Table Enclosure Class I Z-Axis Enclosure
mm inch
mm inch
mm inch
mm inch
mm inch
mm inch
External Height – Door Closed
295.3 11.63
406.4 16.00
612.2 24.10
914.4 36.00
1174.8 46.25
1089.7 42.90
External Height – Door Open
295.3 11.63
406.4 16.00
612.2 24.10
914.4 36.00
1174.8 46.25
1336.1 52.60
External Width – Door Closed
208.2 8.00
330.2 23.00
609.6 24.00
762.0 30.00
703.6 27.70
650.3 25.60
External Width – Door Open
203.2 8.00
1168.4 46.00
609.6 24.00
762.0 30.00
703.6 27.70
650.3 25.60
External Depth
320.63 12.62
406.4 16.00
683.3 26.90
762.0 30.00
990.6 39.00
800.1 31.50
Maximum Work Piece Area
Variable *
Variable *
Variable *
Variable *
Variable *
Variable *
Maximum Work Piece Height
Variable **
Variable **
Variable **
Variable **
Variable **
Variable **
Opening Door Max Height
241.3 9.50
355.6 14.00
508.0 20.00
787.4 31.00
152.4 6.00
616.0 24.25
Opening Door Max Width
222.3 8.75
508.0 20.00
508.0 20.00
635.0 25.00
508.0 20.00
520.7 24.25
Weight (Without Laser)
10 lbs
45 lbs
100 lbs
125 lbs
200 lbs
150 lbs
Laser Class
Class 1 per DIN EN 60825-1
Humidity Range
80% non-condensing
Operational Temperature Range
~ 10 – 35 °C
Notes: * Maximum work piece area is dependent on the size of the part (L x W) and the location of the mark (X & Y axis positioning). ** Maximum work piece height is dependent on F-Theta lens configuration and fixturing.
Class I Large Enclosure Benefits:
  • Economical
  • Desktop Design
  • Batch Part Processing
  • Door w/ Viewing Window
  • External Aiming Diode for Easy Focusing
Class I Large Enclosure Configuration Options:
  • Accommodates 100 mm, 163 mm, & 254 mm F-Theta Lens Options Only
  • Pass-Through Doors for longer parts
  • Mobile Cart
  • Plug and Play Rotary Chuck Adaptation
