Class 1 Sliding Door Enclosure

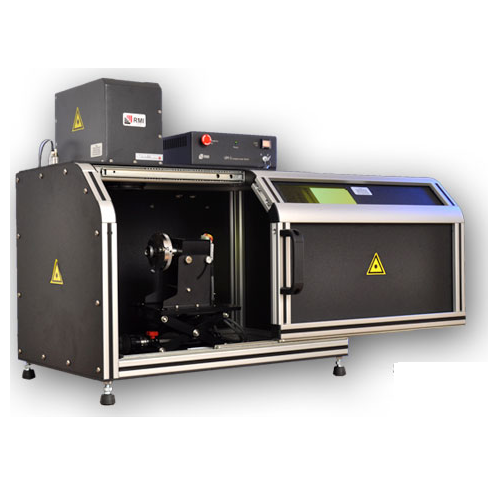

The Class I Sliding Door Enclosure is designed for one in and one out part marking operations or small batches. The door slides to the right out of the user’s way to provide access to the marking area. An external aiming diode is used to find the focus quickly and easily. The Class I Sliding Door Enclosure accommodates the 100 mm (2.5” square marking area) and 163 mm (4.25” square marking area) lenses, is inexpensive and very user friendly.

Category:

Description

Specs

Class I Portable Enclosure Class I Sliding Door Enclosure Class I Large Enclosure Class Extra Large Enclosure Class I Rotary Table Enclosure Class I Z-Axis Enclosure
mm inch
mm inch
mm inch
mm inch
mm inch
mm inch
External Height – Door Closed
295.3 11.63
406.4 16.00
612.2 24.10
914.4 36.00
1174.8 46.25
1089.7 42.90
External Height – Door Open
295.3 11.63
406.4 16.00
612.2 24.10
914.4 36.00
1174.8 46.25
1336.1 52.60
External Width – Door Closed
208.2 8.00
584.2 23.00
609.6 24.00
762.0 30.00
703.6 27.70
650.3 25.60
External Width – Door Open
203.2 8.00
1168.4 46.00
609.6 24.00
762.0 30.00
703.6 27.70
650.3 25.60
External Depth
320.6 12.62
406.4 16.00
683.3 26.90
762.0 30.00
990.6 39.00
800.1 31.50
Maximum Work Piece Area
Variable *
Variable *
Variable *
Variable *
Variable *
Variable *
Maximum Work Piece Height
Variable **
Variable **
Variable **
Variable **
Variable **
Variable **
Opening Door Max Height
241.3 9.50
355.6 14.00
508.0 20.00
787.4 31.00
152.4 6.00
615.0 24.25
Opening Door Max Width
222.3 8.75
508.0 20.00
508.0 20.00
635.0 25.00
508.0 20.00
520.7 24.25
Weight (Without Laser)
10 lbs
45 lbs
100 lbs
125 lbs
200 lbs
150 lbs
Laser Class
Class 1 per DIN EN 60825-1
Humidity Range
80% non-condensing
Operational Temperature Range
~ 10 – 35 °C
Notes: * Maximum work piece area is dependent on the size of the part (L x W) and the location of the mark (X & Y axis positioning). ** Maximum work piece height is dependent on F-Theta lens configuration and fixturing.


Class I Slıdıng Door Enclosure Benefıts:
  • Economical
  • Space Saving Desktop Design
  • Batch Part Processing
  • Lightweight, Sliding Door w/ Viewing Window
  • External Aiming Diode for Easy Focusing
Class I Slıdıng Door Enclosure Confıguratıon Optıons:
  • Pass-Through Doors for longer parts
  • Mobile Cart
  • Plug and Play Rotary Chuck Adaptation
