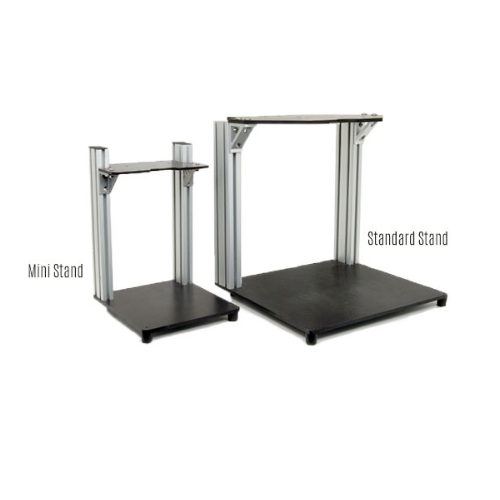

Class 4 Mini Stand/Standard Stand

Because not everybody is suited for a Class I workstation or has parts that fit into a Class I workstation, RMI Laser has developed Class IV Stands for use with our systems. These are an economical alternative, designed specifically for larger or longer part marking.

  • Mini stand dimensions 11.5” x 10.5” x 16.5”
  • Standard stand base plate dimensions 18.25”x 16.75”

Category:

Description

Mini Stand Standard Stand w/ 17.5″ Legs Standard Stand w/ 31″ Legs Standard Stand w/ 40″ Legs Z-Axis Stand Z-Axis Stand 2.0
 Lasers
UM-1 x x x x x x
UM-2G x x x x x
UM-5G x x x x x
U-10 x x x x x
U-20 x x x x x
UF-20 x x x x x
UF-30 x x x x x
UF-50 x x x x x
Lenses
100mm* x x x x x x
163mm* x x x x x x
165mm* x x x x x
254mm* x x x x
330mm* x x x** x**
420mm* x x** x**
Breadboards
6×6 x x x x x
9×9 x x x x
12×12 x x x
 Notes: * Dependent on part height
** May require an extension
Class IV Mini Stand/Standard Stand Benefits:
  • Most economical workstation option
  • Small footprint
  • Multiple leg height options
  • Designed for wide or long part marking
  • T-Slot Base for easy fixturing
Class IV Mini Stand/Standard Stand Options:
  • Rotary Chuck Adaptation
  • Breadboard Adaptation
