Class IV Z-Axis Linear Stand

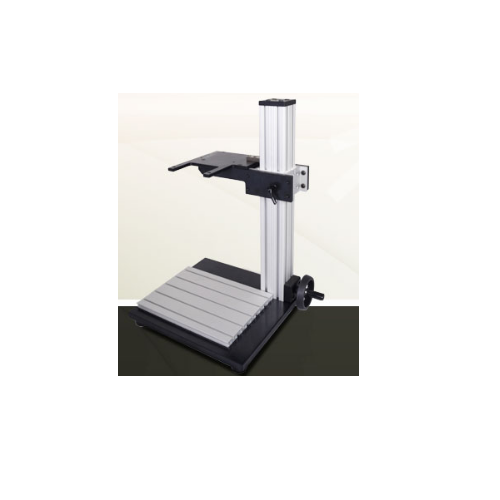

Because not everybody is suited for a Class I workstation or has parts that fit into a Class I workstation, RMI Laser has developed Class IV Stands for use with our systems. This Class IV Z-Axis Stand comes with a side crank, top crank or motorized programmable Z-Axis adjustments for easy focusing and setup. The Class IV stands are an economical alternative, designed specifically for larger or longer part marking.

  • 15” x 15” base plate
  • Vertical aluminum 22” column

Category:

Description

Mini Stand Standard Stand w/ 17.5″ Legs Standard Stand w/ 31″ Legs Standard Stand w/ 40″ Legs Z-Axis Stand
 Lasers
UM-1 x x x x x
UM-2G x x x x
UM-5G x x x x
U-10 x x x x
U-20 x x x x
UF-20 x x x x
UF-30 x x x x
UF-50 x x x x
Lenses
100mm* x x x x x
163mm* x x x x x
165mm* x x x x
254mm* x x x
330mm* x x x**
420mm* x x**
Breadboards
6×6 x x x x
9×9 x x x
12×12 x x
 Notes: * Dependent on part height
** May require an extension
Class IV Z-Axis Linear Stand Benefits:
  • Side crank or top crank design
  • Lock down handle
  • T-Slot base for easy fixturing
  • Designed for large or long part marking
  • External focusing diode for easy focusing
Linear Stand Configuration Options:
  • Programmable Z-Axis
  • Rotary Chuck Adaptation
  • Breadboard Adaptation
  • 4″ Extension
