Class 1 Portable Enclosure

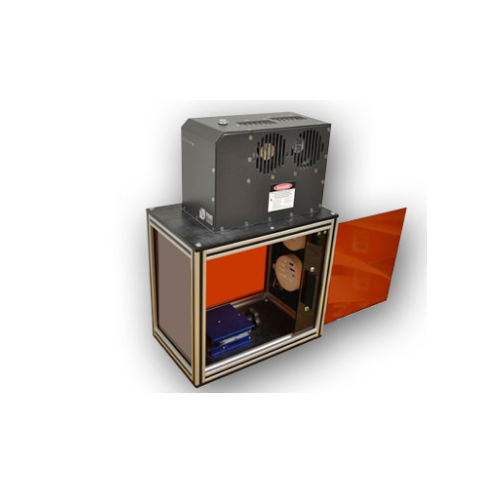

The Class I Portable Travel Enclosure is a very simple design that allows for quick and easy setup and teardown. The enclosure features laser safety glass on three sides so the part marking can be viewed from any angle. It also includes a simple sliding door to access the internal marking chamber. There is an external aiming diode for quick and easy focusing along with a lab jack and breadboard if desired. Also, there are vents in the side of the enclosure for fume extraction if needed.

The UM-1 marker head mounts directly onto the top of the enclosure and can be packed in the case still mounted to the enclosure. The travel case has room for the laser marking system, enclosure, cables, and a laptop and weighs under 50 lbs.

Category:

Description

Specs

Class I Portable Enclosure Class I Sliding Door Enclosure Class I Large Enclosure Class I Extra Large Enclosure Class I Rotary Table Enclosure Class I Z-Axis Enclosure
mm inch
mm inch
mm inch
mm inch
mm inch
mm inch
External Height – Door Closed
295.3 11.63
406.4 16.00
612.1 24.10
914.4 36.00
1174.8 46.25
1089.7 42.90
External Height – Door Open
295.3 11.62
406.4 16.00
612.1 24.10
914.4 36.00
1174.8 46.25
1336.1 52.60
External Width – Door Closed
208.2 8.00
330.2 23.00
609.6 24.00
762.0 30.00
703.6 27.70
650.2 25.60
External Width – Door Open
203.2 8.00
1168.4 46.00
609.6 24.00
762.0 30.00
703.6 27.70
650.2 25.60
External Depth
320.6 12.62
406.4 16.00
683.3 26.90
762.0 30.00
990.6 39.00
800.1 31.50
Maximum Work Piece Area
Variable *
Variable *
Variable *
Variable *
Variable *
Variable *
Maximum Work Piece Height
Variable **
Variable **
Variable **
Variable **
Variable **
Variable **
Opening Door Max Height
241.3 9.50
355.6 14.00
508.0 20.00
787.4 31.00
152.4 6.00
616.0 24.25
Opening Door Max Width
222.3 8.75
508.0 20.00
508.0 20.00
635.0 25.00
508.0 20.00
520.7 24.25
Weight (Without Laser)
10 lbs
45 lbs
100 lbs
125 lbs
200 lbs
150 lbs
Laser Class
Class 1 per DIN EN 60825-1
Humidity Range
80% non-condensing
Operational Temperature Range
~ 10 – 35 °C
Notes: * Maximum work piece area is dependent on the size of the part (L x W) and the location of the mark (X & Y axis positioning). ** Maximum work piece height is dependent on F-Theta lens configuration and fixturing.
Class I Portable Enclosure Benefıts:
  • Weighs less than 50lbs with Case
  • Portable & Travel Ready
  • Plug and Play Design
  • External Aiming Diode for Easy Focusing
Class I Portable Enclosure Configuration Options:
  • Accommodates 100 mm & 163 mm Lenses only
