Class I Zen Programmable Z-Axis Enclosure

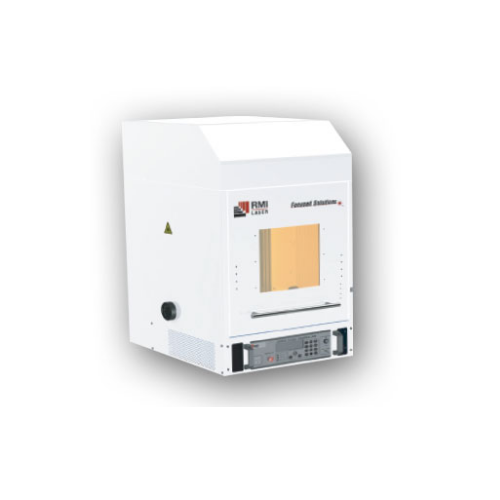

The Class I Zen Programmable Z-Axis Enclosure is optimal for laser marker applications with varying part heights or those with irregular part geometry. Programming the Z-Axis is as easy as entering in the part height with the corresponding marking file. The linear actuator will move the laser marker head to the correct focal height and mark once it arrives. The Programmable Z-Axis Enclosure is class 1 rated and is available with an optional fume extractor for materials that leave heavy particulates or noxious gases during laser marking. The lightweight, upswinging door design and T-Slot base enable users to load and unload parts with ease and precision. There is also a mobile cart available for the Zen Enclosure to make the laser marker enclosure to port the laser around your facility.

If your goals are to simplify your laser marking process and ensure throughput and safety, the Programmable Z-Axis Enclosure is your solution.

Category:

Description

Class I Portable Enclosure Class I Sliding Door Enclosure Class I Large Enclosure Class I Extra Large Enclosure Class I Rotary Table Enclosure Class I Z-Axis Enclosure
mm inch
mm inch
mm inch
mm inch
mm inch
mm inch
External Height – Door Closed
295.3 11.63
406.4 16.00
612.2 24.10
914.4 36.00
1174.8 46.25
1089.7 42.90
External Height – Door Open
295.3 11.63
406.4 16.00
612.2 24.10
914.4 36.00
1174.8 46.25
1336.1 52.60
External Width – Door Closed
208.2 8.00
330.2 23.00
609.6 24.00
762.0 30.00
703.6 27.70
650.3 25.60
External Width – Door Open
203.2 8.00
1168.4 46.00
609.6 24.00
762.0 30.00
703.6 27.70
650.3 25.60
External Depth
320.7 12.63
406.4 16.00
683.3 26.9
762.0 30.00
990.6 39.00
800.1 31.50
Maximum Work Piece Area
Variable *
Variable *
Variable *
Variable *
Variable *
Variable *
Maximum Work Piece Height
Variable **
Variable **
Variable **
Variable **
Variable **
Variable **
Opening Door Max Height
241.3 9.50
355.6 14.00
508.0 20.00
787.4 31.00
152.4 6.00
616.0 24.25
Opening Door Max Width
222.3 8.75
508.0 20.00
508.0 20.00
635.0 25.00
508.0 20.00
520.7 24.25
Weight (Without Laser)
10 lbs
45 lbs
100 lbs
125 lbs
200 lbs
150 lbs
Laser Class
Class 1 per DIN EN 60825-1
Humidity Range
80% non-condensing
Operational Temperature Range
~ 10 – 35 °C
Notes: * Maximum work piece area is dependent on the size of the part (L x W) and the location of the mark (X & Y axis positioning). ** Maximum work piece height is dependent on F-Theta lens configuration and fixturing.
Class I ZEN Programmable Z-Axis Enclosure Benefits:
  • Programmable Z-Axis for Easy Focusing
  • Lightweight, Upswinging Door w/ Viewing Window
  • Fume Extractor Port and Auto-On Connection
  • Plug & Play Design
  • Accommodates All Lens Options (100 mm -420 mm)
Class I ZEN Programmable Z-Axis Enclosure Configuration Options:
  • Accommodates 100 mm-420 mm F-Theta Lenses
  • Mobile Cart
  • Mobile Cart with Swinging Arm for PC or Laptop
  • Desktop Workstation
  • Plug and Play Rotary Chuck Adaptation
