Description

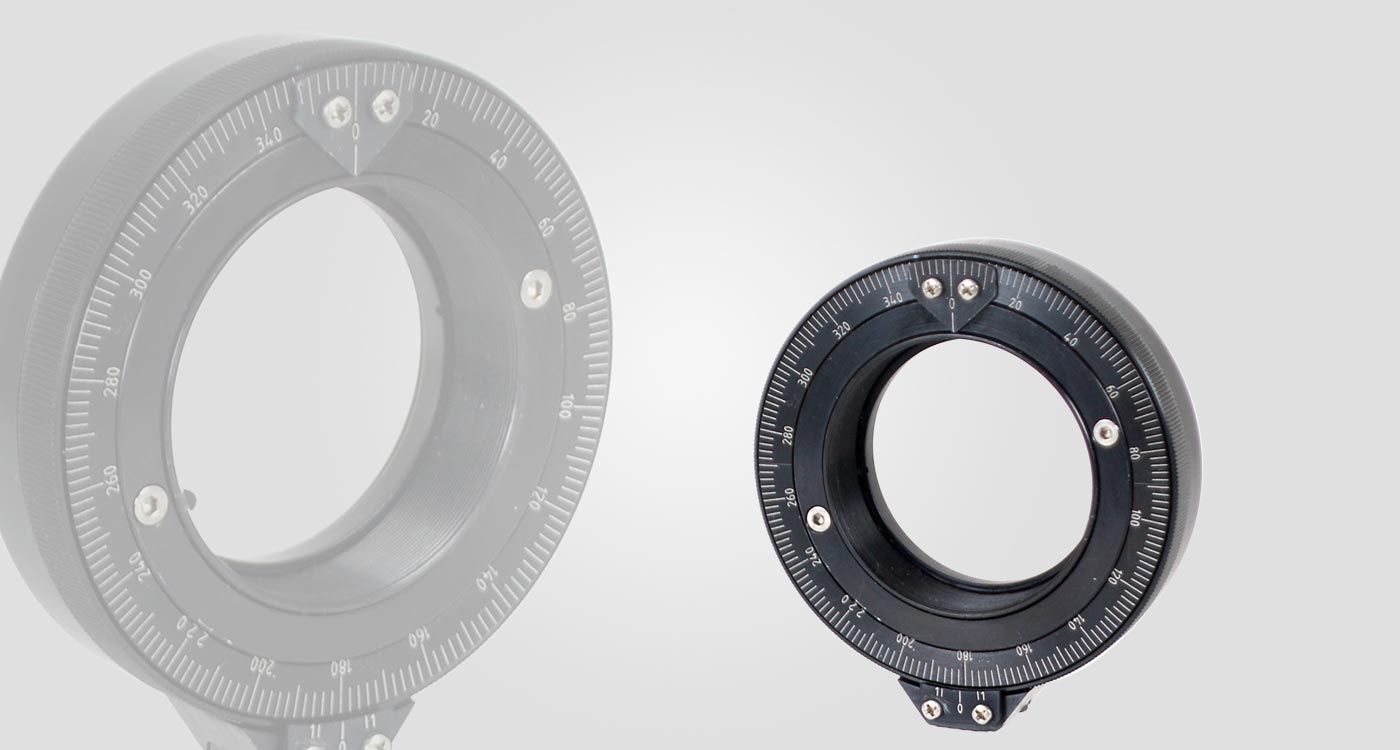

This polarizer mount provides continuous 360° rotation with 0.5 degree resolution within vernier scale. Outside surface is knurled to ensure grip while positioning. There is M6 tapped hole at the bottom for post mounting. Fast axis of the mounted wave plate can be set to the desired reading with the help of a dial which is rotatable independently.
Specifications
| Able to set fast axis dial |
| 360 degree continuous rotation |
| 0.5 Degree resolutiont |
| Suitable 1″ and 2″ optics |
| Suitable for wave plates & polarizing optics |
| For smaller optics, adapters can be used |
| Post mountable with M6 screws |
| Aluminium alloy & black anodized finish |
Documents / Drawings
| Model No | Optic Size | Thread Depth | Thread Type | ||
| PMC – FA – 25 | 1″ or 25 mm | 15 mm | HM1 | ||
| PMC – FA – 50 | 2″ or 50 mm | 17 mm | HM2 |
