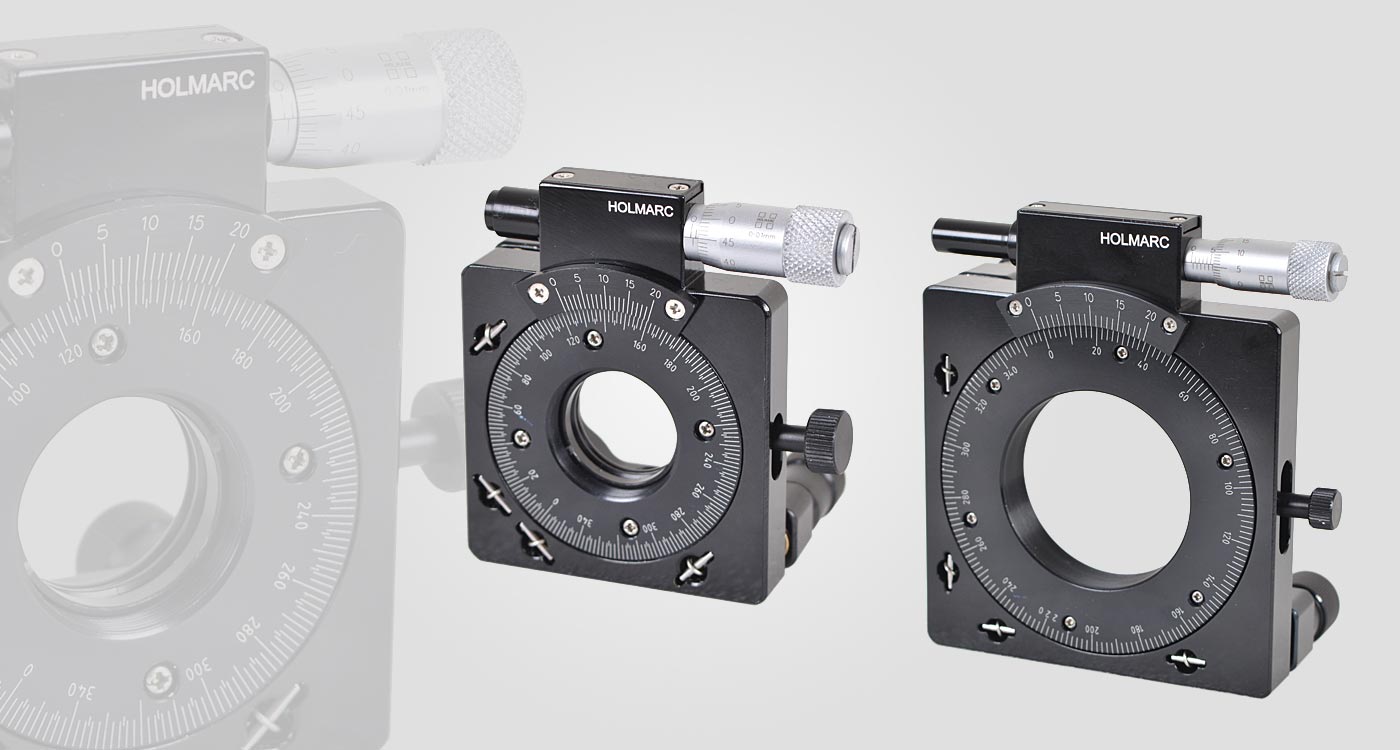

Precision Polarizer Rotator with Tilt

TLT Series

Fine tilting beam axis arrangement
Precision rotary & fine adjustments

Category:

Description

Precision rotary adjustments are possible with this mount. Plate/sheet polarizers are held between two threaded rings inside a threaded bore. For other shapes, adapters have to be used.

Kinematic design of this mount provides fine tilt adjustments in two planes for the mounted polarizers.



Specifications

        +/- 3° kinematic tilt
        Lead screw drive for tilt
        0.1° resolution for rotation
        Manual 360° rotation
        ±3 degree precision movement
        Rotation drive by micrometer
        Optics held by threaded ring
        Threaded bore depth    :    12 mm
        M6 mounting holes
        Post mountable
        Aluminium alloy
        Black anodized finish

Glan-thompson prism adaptors are also available.



Model No Optic Diameter : D Thread Type Type Price $
TLT – 25PMC 25 mm / 1″ HM1 Polarizer Rotator with Tilt
TLT – 50PMC 50 mm / 2″ HM2 Polarizer Rotator with Tilt
TLT – 25PMP 25 mm / 1″ HM1 Precision Polarizer Rotator with Tilt
TLT – 50PMP 50 mm / 2″ HM2 Precision Polarizer Rotator with Tilt
