Description
| Model | Ylia M20EG* |
|---|---|
| Optical specifications | |
| Wavelength (nm) | 1064 |
| Mean Power (W) | 20 |
| Pulse energy (mJ) | 0.8 |
| Pulse duration (ns) | 80 |
| Peak power (kW) | 10 (at 25 kHz) |
| Repetition rate (kHz) | 25 to 250 |
| Switch on / off (µs) | 200 / 9 |
| Beam characteristics | |
| Beam quality | 2.0 |
| Beam diameter (99%) (mm) | 8 |
| Beam divergence (beam expender) (mrad) | < 1 |
| Facility requirements | |
| Supply voltage (VDC) | 24 |
| Power consumption (W) | 125 |
| Cooling | Air cooled (heatsink and fans included) |
| Operating temperature (°C) | 5 – 40 |
| Mechanical dimensions | |
| Optical head dimensions (mm) | 264.9 x 53 x 48 |
| Laser box dimensions (mm) | 285 x 210 x 95 |
| Fiber delivery length (m) | 3 |
* 9 mm beam expander

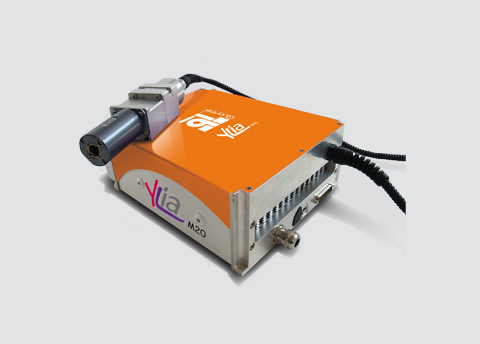

Ylia M20EG by Quantel is a rugged and compact pulsed fiber laser intended for integration into industrial equipment.
This laser delivers 20W average power via a long flexible fiber delivery and collimating optics.
Its high peak power pulses combined with an enhanced beam quality are ideal for deep engraving and holes drilling applications on highly reflective materials such as gold and copper. With its enhanced optical design and isolation, the Ylia M20EG is insensitive to back reflection. The laser is delivered with a full warranty including marking on copper or highly reflective materials.
As part of Ylia M series, Ylia M20EG might be driven either by TTL signal (8 bit TTL for power setting, synchronization signal for repetition rate and activation signal to switch on/off the laser) or by its user-friendly USB software.
Options
- 12 mm beam expander
- Red aiming beam
Applications
- Deep engraving on reflective materials
- Fine marking
- Hole drilling
- Diamond bruting
- Engraving
- Marking
- etc.
