Description
| Model | Ylia M20HF* |
|---|---|
| Optical specifications | |
| Wavelength (nm) | 1064 |
| Mean Power (W) | 20 |
| Pulse energy (mJ) | 0.2 |
| Pulse duration (ns) | 20 |
| Peak power (kW) | 7 (at 100 kHz) |
| Repetition rate (kHz) | 100 to 500 |
| Switch on / off (µs) | 150 / 9 |
| Beam characteristics | |
| Beam quality | 1.6 |
| Beam diameter (99%) (mm) | 8 |
| Beam divergence (beam expender) (mrad) | < 1 |
| Facility requirements | |
| Supply voltage (VDC) | 24 |
| Power consumption (W) | 125 |
| Cooling | Air cooled (heatsink and fans included) |
| Operating temperature (°C) | 5 – 40 |
| Mechanical dimensions | |
| Optical head dimensions (mm) | 230 x 50 x 43 |
| Laser box dimensions (mm) | 286 x 215 x 95 |
| Fiber delivery length (m) | 3 |
* 9 mm beam expander

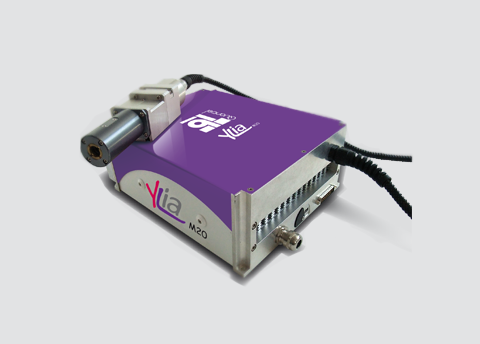

Ylia M20HF by Quantel is a rugged and compact pulsed fiber laser intended for integration into industrial equipment.
This laser delivers 20 W average power via a flexible output fiber and collimating optics.
Its high peak power pulses, available at high repetition rates, are suitable for applications such as plastics marking, high speed layers removal, solar cells scribing.
The Fast+ feature significantly reduces switch-off delay to 9 µs resulting in a significant time per job reduction and higher quality compared to other fiber lasers. Smaller spot sizes are possible due to its excellent beam quality, allowing for finer detailed marking.
As part of Ylia M series, Ylia M20HF might be driven either by TTL signal (8 bit TTL for power setting, synchronization signal for repetition rate and activation signal to switch on/off the laser) or by its user-friendly USB software.
Options
- 12 mm beam expander
- Red aiming beam
- 100 mm focusing length
Applications
- Plastics day and night marking
- Plastics marking
- Solar cells scribing and edge isolation P1 and P4
- High speed anodization and paint removal
- Thin films processing
- Marking
- etc.
