Description
| Model | Ylia M30EG* |
|---|---|
| Optical specifications | |
| Wavelength (nm) | 1064 |
| Mean Power (W) | 30 |
| Pulse energy (mJ) | 1 |
| Pulse duration (ns) | 80 |
| Peak power (kW) | 12 (at 30 kHz) |
| Repetition rate (kHz) | 30 to 250 |
| Beam characteristics | |
| Beam quality (4 sigma) | 2.0 |
| Beam diameter (99%) (mm) | 11 |
| Beam divergence (beam expender) (mrad) | < 1 |
| Facility requirements | |
| Supply voltage (VDC) | 24 |
| Power consumption (W) | 160 |
| Cooling | Air cooled (heatsink and fans included) |
| Operating temperature (°C) | 5 – 35 |
| Mechanical dimensions | |
| Optical head dimensions (mm) | 298.7 x 53 x 48 |
| Laser box dimensions (mm) | 285 x 210 x 95 |
| Fiber delivery length (m) | 3 |
* 11 mm beam expander

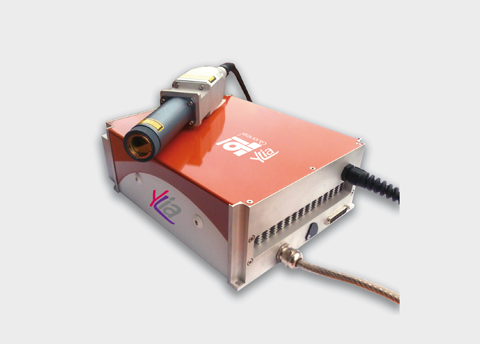

The Ylia M30EG by Quantel is a rugged and compact pulsed fiber laser intended for integration into industrial equipment.
This laser delivers 30W average power via a long flexible fiber delivery and collimating optics.
Its high peak power pulses combined with high average power are ideal for fast deep engraving and holes drilling applications even on highly reflective materials such as gold and copper.
Short pulse duration and high beam quality further improve texturing and isolation for photovoltaic applications without degrading heat affected zone (HAZ).
As part of the Ylia M series, Ylia M30EG might be driven either by TTL signal (8 bit TTL for power setting, synchronization signal for repetition rate and activation signal to switch on/off the laser) or by its user-friendly USB software.
Options
- 9 mm beam expander
- Red aiming beam
Applications
- Fast deep engraving (+80 % compared to 20 W)
- Hole drilling
- Dual head marking
- Solar edge isolation P1 and P4
- Diamond bruting
- Engraving
- Marking
- etc.
