EverGreen HP (50-340 mJ @ 532 nm)

The EverGreen HP (High Power) is a dual pulsed laser for PIV applications. It uses two DRL models in one common laser head with beam combination optics. The design enables a broad range of pulse energy and repetition rate combinations. Two versions of power supplies are used to cover the whole range of repetition rates.
The EverGreen HP covers 15 – 200 Hz with pulse energies of 340 – 50 mJ at 532 nm. The laser head is compact for easy integration and sealed to operate in various environments.

  • Available in 532 nm
  • Quick umbilical disconnects
  • Compact
  • Multimode resonators
  • 100 million shots lamp lifetime guaranteed
  • Sealed laser head to operate in various environments

Category:

Description

Model EverGreen HP 15-340-S EverGreen HP 30-300-S EverGreen HP 100-100-S EverGreen HP 150-75-S EverGreen HP 200-50-S
Repetition rate (Hz) 15 30 100 150 200
Energy (mJ) 532 nm 340 300 100 75 50

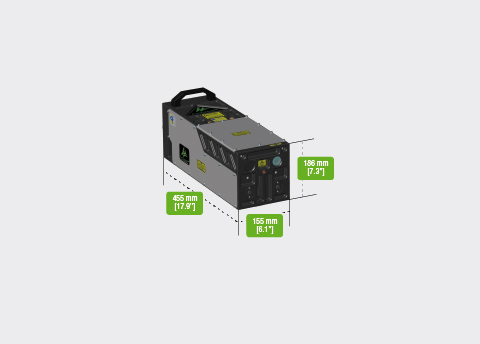

Dimensions in mm [inches] (H x L x W) Laser head Laser head 186 x 455 x 155 [7.3 x 17.9 x 6.1]
Power supply 406 x (2 x 236) x 500
[16 x (2 x 9.3) x 19.7]		 Depends on cooling type – water-to-water or water-to air
Weight in kg [lbs] Laser head 11.1 [24.5]
Power supply 2 x 18 kg [2 x 39.5] Depends on cooling type – water-to-water or water-to air

Applications

  • PIV
  • etc.

Related products

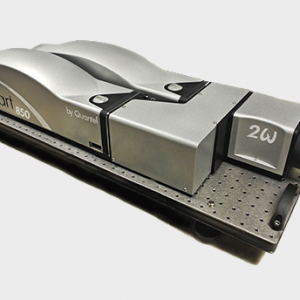

Q-smart Twins (380 mJ @ 532 nm)

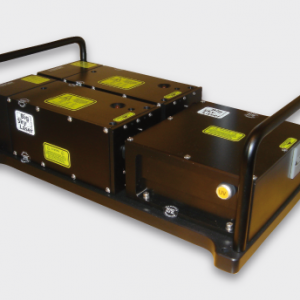

Twins BSL
