Twins BSL

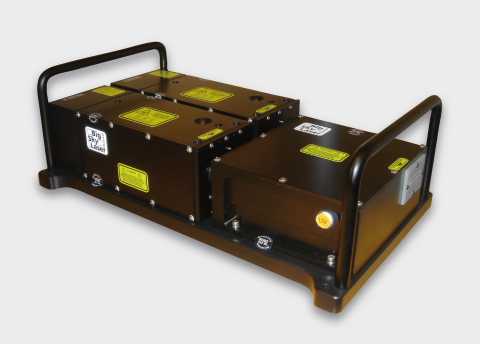

The Twins BSL feature two rugged Ultra or CFR lasers mounted side by side. The beams are combined in a single optical axis. Models are available at 1064 nm (GRM) for double-pulse LIBS or at 266 nm (stable) for PIV. Precise beam overlap and complete timing control allows the user to create two perfectly overlapped light sheets for the most rigorous of PIV applications.

  • Extended temperature performance
  • Guaranteed beam overlap and laser alignment
  • Specially configured for LIBS and PIV
  • Push button selector for 266 nm
  • Longer umbilical choices

Description

Model Twins BSL 100 Twins BSL 200 Twins BSL 330
Repetion rate (Hz) 10/15 10/15 10/15
Energy @ 1064 nm (mJ) 2 x 100 2 x 200 2 x 230
Energy @ 532 nm (mJ) On request
Energy @ 355 nm (mJ)
Energy @ 266 nm (mJ) 2 x 30

Applications

  • Double pulse LIBS
  • LIF
  • PIV
  • Laser ultrasound
  • etc
