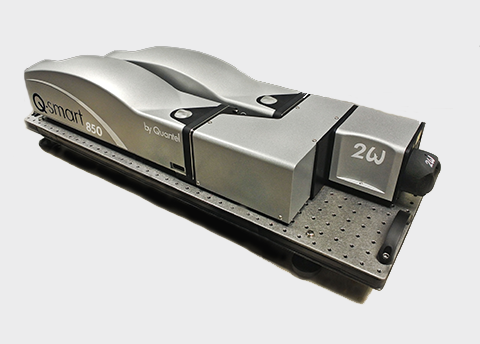

Q-smart Twins (380 mJ @ 532 nm)

The Q-smart Twins combines two proven Q-smart 850 lasers to achieve dual pulses in IR, visible and UV. With its Plug and Play harmonic generators, its intelligent autotuning of harmonics, injection seeded and dye pumping options, this system is suitable for a variety of applications. High energy level and low divergence beams are conducive to producing thin and large light sheets for 1:1 scale and 3D measurements.

  • 1064, 532, 355, 266 and 213 nm available
  • Interchangeable harmonic generators
  • Intelligent autotuning of harmonics
  • Linewidth: 0.005 cm-1 @ 1064 nm with SLM option
  • Specially designed for LIBS, LIF and PIV
  • Compact with quick connect cables

Description

Model Q-smart Twins
Repetition rate (Hz) 10
Energy @ 1064 nm (mJ) > 2 x 730
Energy @ 532 nm (mJ) > 2 x 380
Energy @ 355 nm (mJ) > 2 x 200
Energy @ 266 nm (mJ) > 2 x 90
Energy @ 213 nm (mJ) on request

Applications

  • Holography
  • LIBS
  • PLIF
  • LIF
  • PIV
  • etc.
