Laboratory EDXRF Analyzer X-REF

DESCRIPTION

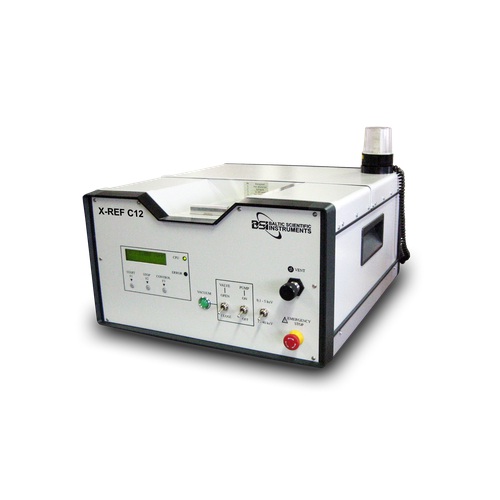

The X-REF C12 is a desktop energy dispersive X-ray fluorescence spectrometer. X-REF C12 provides multielement analysis of samples from sodium (Na) to uranium (U), with concentration on the level of several ppm and up to dozens of percents. X-REF C12 developed for analysis of various nature and industrial materials.

Category:

Description

Features

The X-REF C12 is a desktop energy dispersive X-ray fluorescence spectrometer. X-REF C12 provides multielement analysis of samples from sodium (Na) to uranium (U), with concentration on the level of several ppm and up to dozens of percents. X-REF C12 developed for analysis of various nature and industrial materials.Superb analytical characteristics are provided by the application of direct excitation geometry and Silicon Drift Detector (SDD) with thin window. This combination guarantee good analytical parameters: excellent definition of elements, low detection limits, high accuracy and safety.Measurements could be done in air or in vacuum, depending on element number in periodic table. Capability to make measurements with helium is also provided.

SPECIFICATION

Parameter Value
Excitation source X-ray tube (Mo, Rh, Ag etc.). HV from 5 to 50 kV, Optionally: ultrathin window
Primary excitation filters Changeable filter for optimization of specific elements excitation
Collimators Changeable collimators for samples with various dimensions
Detector SDD with ultrathin window
Measurement medium Vacuum (for solid samples), helium (solid samples, powder or liquids), air (for elements from K, any samples)
Software Applied software, Windows compatible
Power supply 230+ 5V, 50 Hz/ 250 VA
