Online Multichannel Coating Thickness Analyzer

DESCRIPTION

Coating Thickness Analyzer is a tool for precise and accurate XRF measurement of various metallic and non-metallic coatings thickness (anticorrosive, insulating, antioxidizing, waterproof, pipe coating, etc.). Base/coating components are elements from Mg to U. System is applicable for control and monitoring of industrial processes.

Category:

Description

Application

Coating Thickness Analyzer is a tool for precise and accurate XRF measurement of various metallic and non-metallic coatings thickness (anticorrosive, insulating, antioxidizing, waterproof, pipe coating, etc.). Base/coating components are elements from Mg to U. System is applicable for control and monitoring of industrial processes.

Features

  • Automatic choice of coating thickness evaluation method for optimization of relative error of measurements

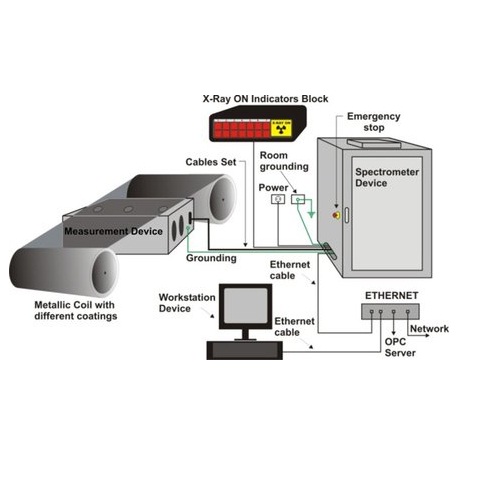

  • Remote control of analyzer electronics and software by ETHERNET interface from workstation device and communications with OPC server
  • Very simple and convenient operation and service
  • Possibility to install the measurement block under and/or above the measured material
  • Built-in industrial computer

SPECIFICATION

Parameters Value
Substrate materials metal or non-metal
Coating materials elements from Mg to U, their compounds
Range of measured Al, Ti, Ti02, coating thickness on the stainless steel substrate, nm 50 – 30000
Range of measured Cu, Zn, Ni coating thickness on the stainless steel substrate, nm 5 – 5000
Range of measured Au coating thickness on the substrate, nm 2 – 3000
Relative error for measured time 5s, % 1…10 %
Operational temperature range, °C + 5 to +40
Radiation source X-ray tube (Mo, Rh, Ag etc.)
Detector type SDD detector
Power supply 50/60 Hz, VAC 230;380
